Fronus Inverter Battery Not Charging: Troubleshooting and Fixes

Key Takeaways

• Always check physical battery connections and inverter fault codes first.
• Verify inverter settings for maximum charge current and charger source priority.
• A battery voltage that is too low can prevent the inverter from initiating charging.
• Do not attempt DIY repairs if internal fuses are tripped or internal components are damaged; contact a qualified technician.

Why is my Fronus inverter battery not charging?

If your Fronus inverter battery is not charging, the most common causes include disconnected battery cables, incorrect inverter settings, issues with the AC input power, or problems with the solar PV array. The first thing to check is the inverter's LCD display for any fault codes or warnings, and then physically inspect all battery connections.

Diagnosis

Follow these numbered steps to diagnose why your Fronus inverter battery is not charging. Each step helps identify a potential cause.

1. Check the Inverter Display for Fault Codes:

• • Observation: The inverter LCD displays a fault code.
  • Meaning: Specific fault codes indicate particular issues.
  • • Fault Code 04 (Battery voltage is too low): The battery voltage is below the operational threshold. The inverter may not attempt to charge a critically low battery.
    • Fault Code 03 (Battery voltage is too high): The battery voltage exceeds safe limits. This will stop charging to prevent damage.
    • Fault Code 59 (PV voltage is over limitation): The solar array's voltage is too high. This will prevent solar charging.
  • Action: Refer to the "Cause/Fix Table" below for specific remedies for each fault code.

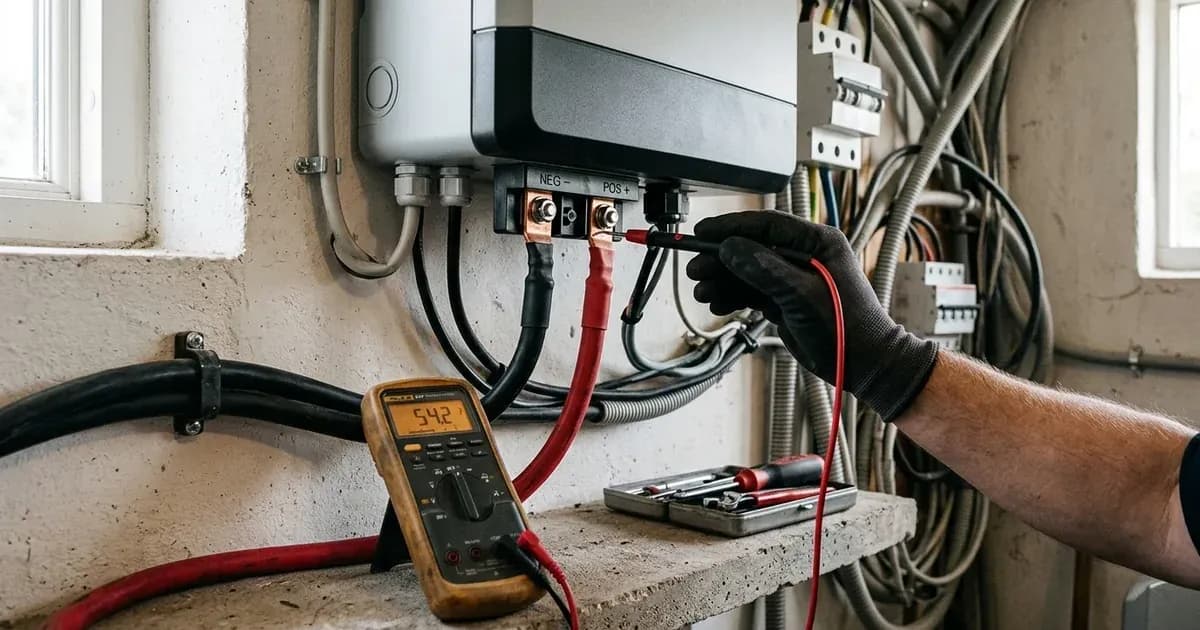

2. Verify Battery Connections:

• • Observation: The inverter's internal relay switches on and off repeatedly, and the LCD/LEDs are flashing.
  • Meaning: This often indicates a disconnected battery.
  • Action: WARNING: Hazardous voltage is present. To reduce risk of electric shock, disconnect all wirings (PV, AC, and battery) before attempting any maintenance or cleaning. Use insulated tools. Only qualified personnel should install this device with batteries. Be very cautious when working with metal tools on or around batteries. Strictly follow installation procedure when disconnecting AC or DC terminals. Attempting unauthorized repairs can void your warranty. Ensure all battery wires are securely connected to the inverter terminals. Check for loose connections or corrosion. Ensure correct polarity (+ to + and - to -) before making the final DC connection.

3. Inspect AC Input Power (for utility charging issues):

• • Observation: Mains power is present, but the inverter operates in battery mode, the green LED is flashing, and the LCD shows 0V for input voltage.
  • Meaning: This suggests an issue with the AC input.
  • Action: WARNING: Hazardous voltage is present. To reduce risk of electric shock, disconnect all wirings (PV, AC, and battery) before attempting any maintenance or cleaning. Use insulated tools. Only qualified personnel should install this device with batteries. Be very cautious when working with metal tools on or around batteries. Strictly follow installation procedure when disconnecting AC or DC terminals. Attempting unauthorized repairs can void your warranty.
  • • Check if the AC breaker is tripped.
    • Verify AC wiring connections are secure.
    • Assess the quality of the AC power. Ensure AC wires are not too thin or too long. If using a generator, confirm it is working correctly.
    • Check the 'AC input voltage range' setting on the inverter. For typical household appliances, the 'Appliances' setting (90-280VAC) is usually appropriate.

4. **Examine the PV Array (for solar charging issues):

• • Observation: The inverter is not showing any PV input or charging current from solar, despite sunlight.
  • Meaning: There may be an issue with the solar panel connections or the array's voltage.
  • Action: WARNING: Hazardous voltage is present. To reduce risk of electric shock, disconnect all wirings (PV, AC, and battery) before attempting any maintenance or cleaning. Use insulated tools. Only qualified personnel should install this device with batteries. Be very cautious when working with metal tools on or around batteries. Strictly follow installation procedure when disconnecting AC or DC terminals. Attempting unauthorized repairs can void your warranty.
  • • Ensure PV array connections are secure at the inverter and combiner box (if used).
    • Check for Fault Code 59 (PV voltage is over limitation). If present, reduce the number of PV modules in series.
    • Verify the PV Array MPPT Voltage Range for your model. For example, the 3KW and 5KW models have a range of 120Vdc~450Vdc.

5. Review Inverter Charge Settings:

• • Observation: No fault codes are present, and connections appear correct, but charging is still not occurring or is insufficient.
  • Meaning: Incorrect inverter settings can prevent proper battery charging.
  • Action: Access the inverter's programming menu (refer to your manual for navigation) and check the following settings:
  • • 'Maximum charging current': This sets the total charging current for solar and utility chargers. Ensure it is set appropriately for your battery bank's capacity. For 1.5KW models, options include 10A, 20A, 30A, 40A, 50A, 60A (default). For 3KW/5KW models, options include 10A, 20A, 30A, 40A, 50A, 60A (default), 70A, 80A.
    • 'Maximum utility charging current': This specifically limits the charging current drawn from the AC utility input. If the value set for 'Maximum charging current' is smaller, the inverter applies that value. Options include 2A, 10A, 20A, 30A (default), 40A. For 3KW/5KW models, 50A and 60A are also available.
    • 'Charger source priority': This determines which source (solar, utility, or both) the inverter prioritizes for charging.
    • • Solar first: Solar power is used for charging first. The utility (AC) charger will only activate if solar power is insufficient or unavailable.
      • Solar and Utility (default): Both sources charge simultaneously.
      • Only Solar: Only solar power is used to charge the battery. The utility charger will remain off.
    • 'Battery type': Incorrect battery type selection can lead to improper charging voltages. Ensure it matches your battery chemistry (AGM, Flooded, or User-Defined).
    • User-Defined Settings: If 'Battery type' is set to 'User-Defined', you can manually configure specific voltage settings. These include:
    • • 'Bulk charging voltage (C.V voltage)': Setting range is from 25.0V to 31.5V (0.1V increment) for 1.5KW/3KW models, and 48.0V to 61.0V (0.1V increment) for 5KW models. These values are referenced at 25°C.
      • 'Floating charging voltage': Setting range is from 25.0V to 31.5V (0.1V increment) for 1.5KW/3KW models, and 48.0V to 61.0V (0.1V increment) for 5KW models. These values are referenced at 25°C.
      • 'Low DC cut-off voltage': Setting range is from 21.0V to 24.0V (0.1V increment) for 1.5KW/3KW models, and 42.0V to 48.0V (0.1V increment) for 5KW models. These values are referenced at 25°C.
    • Battery Equalization Settings (for Flooded or User-Defined battery types):
    • • 'Battery equalization': Can be set to 'Battery equalization disable (default)' or 'Battery equalization'.
      • 'Battery equalization voltage': Setting range is from 25.0V to 31.5V (0.1V increment) for 1.5KW/3KW models, and 48.0V to 61.0V (0.1V increment) for 5KW models. These values are referenced at 25°C.
      • 'Battery equalized time': Setting range is from 5 minutes to 900 minutes (5-minute increment).
      • 'Battery equalized timeout': Setting range is from 5 minutes to 900 minutes (5-minute increment).
      • 'Equalization interval': Setting range is from 0 to 90 days (1-day increment).
      • 'Equalization activated immediately': Can be set to 'Disable (default)' or 'Enable'.

Cause/fix table

Inverter Charging Settings for Fronus (Axpert VM III)

The Fronus inverter, based on the Axpert VM III platform, offers several programmable settings to control how your battery bank is charged. It is crucial to match these settings to your specific battery type to ensure optimal performance and longevity. When adjusting settings, always match them by name rather than relying solely on program numbers, as these can vary with firmware versions.

General Charging Parameters

• 'Maximum charging current' This setting controls the total combined charging current from both the solar array and the utility (AC) input.
• • 1.5KW models: Options include 10A, 20A, 30A, 40A, 50A, 60A (default).
  • 3KW/5KW models: Options include 10A, 20A, 30A, 40A, 50A, 60A (default), 70A, 80A. Ensure this value is appropriate for your battery's capacity to prevent undercharging or overstressing the battery.
• 'Maximum utility charging current' This setting specifically limits the charging current drawn from the AC utility input. If the value set for 'Maximum charging current' is smaller, the inverter will apply that value.
• • Options include 2A, 10A, 20A, 30A (default), 40A.
  • For 3KW/5KW models, 50A and 60A are also available.
• 'Charger source priority' This setting dictates which power source the inverter prioritizes for charging the battery.
• • Solar first: Solar power is used for charging first. The utility (AC) charger will only activate if solar power is insufficient or unavailable.
  • Solar and Utility (default): Both solar and utility power sources charge the battery simultaneously.
  • Only Solar: Only solar power is used to charge the battery. The utility charger will remain off.

Battery Type and Voltage Settings (Lead-Acid Batteries)

The Fronus inverter provides detailed settings for lead-acid battery types (AGM, Gel, and Flooded).

• 'Battery type' Select the type that matches your installed batteries.
• • AGM (default): For Absorbed Glass Mat or Gel batteries.
  • Flooded: For traditional wet-cell lead-acid batteries.
  • User-Defined: Allows manual configuration of specific voltage settings.
• 'Bulk charging voltage (C.V voltage)' This is the voltage at which the battery is charged during the bulk phase.
• • AGM / Gel Battery: Default is 28.2V for 1.5KW/3KW models, and 56.4V for 5KW models. These values are referenced at 25°C.
  • User-Defined: Setting range is from 25.0V to 31.5V (0.1V increment) for 1.5KW/3KW models, and 48.0V to 61.0V (0.1V increment) for 5KW models. These values are referenced at 25°C.
• 'Floating charging voltage' This is the voltage at which the battery is maintained after reaching full charge to prevent self-discharge.
• • AGM / Gel Battery: Default is 27.0V for 1.5KW/3KW models, and 54.0V for 5KW models. These values are referenced at 25°C.
  • User-Defined: Setting range is from 25.0V to 31.5V (0.1V increment) for 1.5KW/3KW models, and 48.0V to 61.0V (0.1V increment) for 5KW models. These values are referenced at 25°C.
• 'Low DC cut-off voltage' This is the voltage at which the inverter will stop drawing power from the battery to protect it from deep discharge.
• • AGM / Gel Battery: Default is 21.0V for 1.5KW/3KW models, and 42.0V for 5KW models. These values are referenced at 25°C.
  • User-Defined: Setting range is from 21.0V to 24.0V (0.1V increment) for 1.5KW/3KW models, and 42.0V to 48.0V (0.1V increment) for 5KW models. These values are referenced at 25°C.

Battery Equalization Settings (Flooded Batteries)

Equalization is a controlled overcharge for flooded lead-acid batteries to balance cell voltages and remove sulfation.

• 'Battery equalization'
• • Battery equalization disable (default): Equalization is off.
  • Battery equalization: Activates the equalization process.
  • Safety Note: Equalization drives the cell into the hydrogen gassing region. This process must only be performed in a well-ventilated space, free from sparks or flames. Always wear eye protection.
• 'Battery equalization voltage'
• • Default is 29.2V for 1.5KW/3KW models, and 58.4V for 5KW models. These values are referenced at 25°C.
  • Setting range is from 25.0V to 31.5V (0.1V increment) for 1.5KW/3KW models, and 48.0V to 61.0V (0.1V increment) for 5KW models. These values are referenced at 25°C.
• 'Battery equalized time' Sets the duration of the equalization charge.
• • Default is 60 minutes.
  • Setting range is from 5 minutes to 900 minutes (5-minute increment).
• 'Battery equalized timeout' Sets the maximum time allowed for the equalization process.
• • Default is 120 minutes.
  • Setting range is from 5 minutes to 900 minutes (5-minute increment).
• 'Equalization interval' Sets how frequently equalization occurs.
• • Default is 30 days.
  • Setting range is from 0 to 90 days (1-day increment).
• 'Equalization activated immediately'
• • Disable (default): Equalization follows the set interval.
  • Enable: Starts equalization immediately.

LiFePO4 Battery Considerations

The Fronus inverter manual mentions "BMS Communication port: CAN and RS232 or RS485" for battery management systems. However, it does not provide specific recommended voltage settings for LiFePO4 battery packs. For LiFePO4 batteries, it is generally recommended to rely on the battery's internal Battery Management System (BMS) for charge control, ideally through a compatible communication protocol with the inverter. If using LiFePO4 batteries without active BMS communication, you would typically use the 'User-Defined' setting ('Battery type') and carefully set the bulk, float, and low DC cut-off voltages according to your battery manufacturer's specifications, ensuring they do not exceed the battery's maximum voltage limits.

For more information on selecting the right battery for your system, you can explore our resources on solar batteries. To ensure your system components are correctly matched, consider using a solar sizing tool.

Safety

Working with solar inverters and batteries involves significant electrical hazards. Always prioritize safety.

• Read the Manual: Always read all instructions and cautionary markings on the unit, batteries, and manual before use.
• Qualified Personnel: Only qualified personnel should install this device with batteries.
• Disconnect Power: To reduce the risk of electric shock, disconnect all wirings (PV, AC, and battery) before attempting any maintenance or cleaning. Strictly follow the installation procedure when disconnecting AC or DC terminals.
• Insulated Tools: Be very cautious when working with metal tools on or around batteries. Use insulated tools to avoid sparks or short circuits. A spanner across a battery bank can short hundreds of amps.
• Battery Type: Charge only deep-cycle lead-acid type rechargeable batteries to reduce the risk of injury. Note: This specific instruction applies to lead-acid batteries, as explicitly stated in the manual. When using other battery chemistries like LiFePO4, always follow the battery manufacturer's safety guidelines and ensure proper BMS communication or user-defined settings are configured to prevent injury or damage. NEVER charge a frozen battery.
• Wiring: Use appropriate cable size for battery connections for system safety and efficient operation. Ensure correct polarity (+ to + and - to -) for DC connections. Do not place anything between the flat part of the inverter terminal and the ring terminal to avoid overheating.
• Grounding: This inverter/charger should be connected to a permanent grounded wiring system. Comply with local requirements.
• No Short Circuits: NEVER cause AC output and DC input to short circuit. Do NOT connect to the mains when DC input short circuits.
• Over-current Protection: A 150A fuse is provided as over-current protection for the battery supply. It is requested to install a separate DC over-current protector or disconnect device between the battery and inverter, and a separate AC breaker between the inverter and AC input power source.
• Mounting: Do not mount the inverter on flammable construction materials. It is suitable for mounting on concrete or other non-combustible surfaces only.

When to call a technician instead

While many charging issues can be resolved with basic troubleshooting, some problems require professional intervention. You should call a qualified technician if:

• The inverter displays fault codes that indicate internal component failure (e.g., Fault Code 08, 09, 51, 52, 53, 55, 57). The manual advises returning the unit to a repair center for these.
• An internal fuse has tripped, and you lack the expertise or authorization to replace it. Opening the unit is authorized-service work. WARNING: Hazardous voltage is present. To reduce risk of electric shock, disconnect all wirings (PV, AC, and battery) before attempting any maintenance or cleaning. Use insulated tools. Only qualified personnel should install this device with batteries. Be very cautious when working with metal tools on or around batteries. Strictly follow installation procedure when disconnecting AC or DC terminals. Attempting unauthorized repairs can void your warranty.
• The battery voltage is extremely low (<1.4V/Cell) and the battery does not respond to attempts to recharge it, suggesting a potentially damaged battery.
• You have checked all connections and settings, but the problem persists.
• You are unsure about any step in the troubleshooting process or working with high voltages.
• The issue involves a warranty claim. Attempting unauthorized repairs can void your warranty. The manual states: "Do not disassemble the unit. Take it to a qualified service center when service or repair is required."
