Homage UPS Battery Not Charging: Fixes for Common Issues

Key Takeaways

• The most common cause for a Homage UPS not charging is an incorrect AC input voltage range setting (Narrow vs. Wide Mode).
• Always check DIP Switch 1 or Program 03 first to ensure the inverter can accept the local grid voltage (Wide / APL mode accepts 90 V–280 VAC).
• Deeply discharged batteries (below 9.0 V for 12 V systems, 18.0 V for 24 V systems) require external bench charging above 11.0 V (for a 12 V battery) before the UPS internal charging circuit will engage.
• Equalization charging (Program 30/31) clears tubular cell stratification by driving cells into the hydrogen gassing region, which requires a well-ventilated space away from sparks and open flames.
• Always disconnect battery and AC mains and wait at least 5 minutes for internal discharge before servicing. A spanner accidentally placed across battery terminals can short hundreds of amps, causing explosive metal sparks and severe burns. Note that opening the inverter casing may void warranty.
• If basic checks do not resolve the issue, or if internal components are suspected, contact an authorized Homage service center under the 1-Year to 2-Year warranty.

Why is my Homage UPS battery not charging?

A Homage UPS battery typically fails to charge due to issues with the AC input voltage range, a deeply discharged battery, a blown internal fuse, or incorrect charging settings. In Pakistan, the most frequent cause is the inverter refusing to synchronize with the grid during peak summer voltage drops (140 V–160 VAC) because the hardware is left in Narrow Mode.

Homage power backup systems in Pakistani homes encompass two major platforms: classic simulated sine wave standalone UPS units (Vertex, Hexa, Octa, Neon, Falcon, Axiom, and Prime series) configured via rear DIP switches, and modern Bolt hybrid series (HBS-3217SCC, HBS-4017SCC, HBS-5617SCC, HBS-6017SCC, HBS-8017SCC) and TronDuo series (HTD-5013SCC) configured via digital LCD program menus (Source: Community benchmarks).

Diagnosis

Follow these steps to diagnose why your Homage UPS battery is not charging. Always disconnect battery and AC mains and wait at least 5 minutes for internal discharge before servicing. A spanner accidentally placed across battery terminals can short hundreds of amps, causing explosive metal sparks and severe burns. Note that opening the inverter casing may void warranty.

1. Check AC Input Voltage Range Setting:

• • Classic Homage UPS (Vertex, Hexa, Octa, Neon, Falcon, Axiom, Prime series): Locate DIP Switch 1 on the rear panel. If it is set to Narrow Mode (OFF / UP position, accepting 170 V–280 VAC), and local WAPDA voltage fluctuates down to 140 V–160 VAC (extremely common during peak Pakistani summer evenings), the UPS refuses to synchronize with grid power and will not charge the battery.
  • Bolt & TronDuo Hybrid Series: Access Program 03 via the LCD menu. Check if it is set to UPS (170–280 VAC).
  • What it means: If grid voltage drops below 170 V, the inverter rejects utility power and cannot charge the battery bank.
  • Fix: For classic models, set DIP Switch 1 to Wide Mode (ON / DOWN position, accepting 90 V–280 VAC) to allow low-voltage charging. For Bolt/TronDuo models, adjust AC input range in Program 03 from UPS to Appliance mode (APL: 90–280 VAC). This prevents the inverter from rejecting low WAPDA grid voltage down to 90 V.

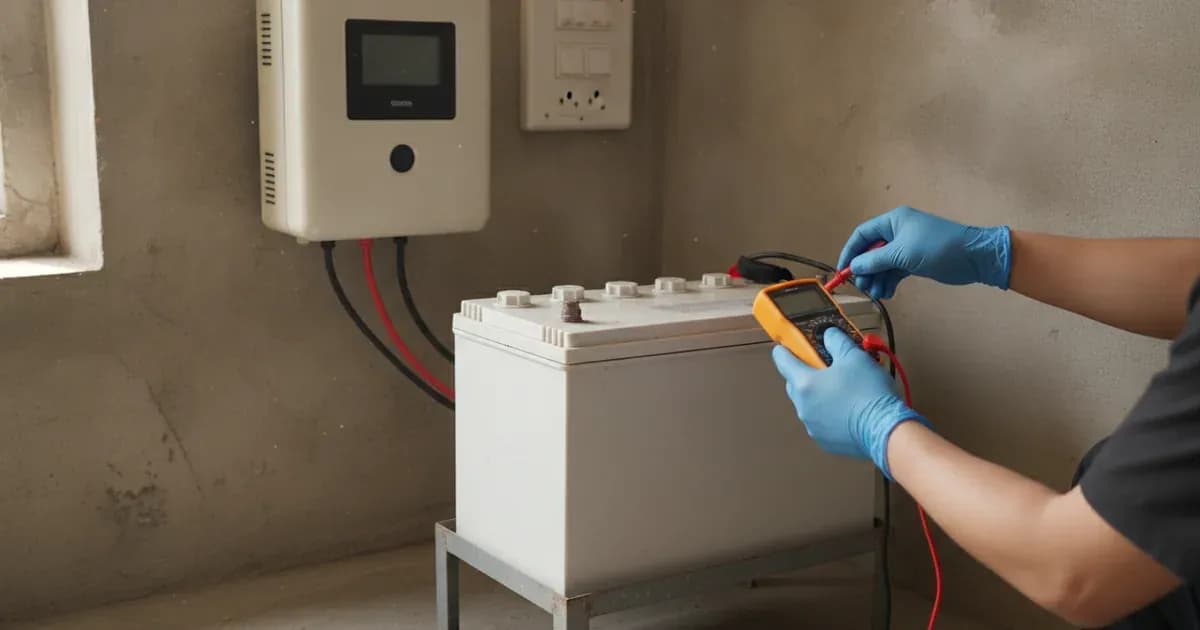

2. Check Battery Voltage for Deep Discharge:

• • Classic & Hybrid Models: Always disconnect battery and AC mains and wait at least 5 minutes for internal discharge before servicing. A spanner accidentally placed across battery terminals can short hundreds of amps, causing explosive metal sparks and severe burns. Use a digital multimeter to measure open-circuit battery voltage.
  • What it means: If a 12 V battery discharges below 9.0 V, or a 24 V battery discharges below 18.0 V during heavy load shedding, the internal smart charging circuit cannot detect battery presence and will not initiate charging (Charging LED stays off).
  • Fix: Use an external automotive battery charger or bench power supply to boost battery above 11.0 V (for a 12 V battery) before reconnecting it to the Homage UPS to resume normal automatic charging.

3. Inspect DC Battery Fuse:

• • Classic & Hybrid Models: Always disconnect battery and AC mains and wait at least 5 minutes for internal discharge before servicing. A spanner accidentally placed across battery terminals can short hundreds of amps, causing explosive metal sparks and severe burns. Carefully open the inverter casing (note that opening casings may void warranty coverage unless performed by authorized personnel). Locate the internal automotive blade fuses, typically 40 A / 80 A, on the main motherboard.
  • What it means: Internal automotive blade fuses (40 A / 80 A) on the main motherboard blow if battery cables were momentarily reverse-connected (+ to -) or subjected to a severe short circuit. A blown fuse completely disconnects the DC charging pathway.
  • Fix: Replace blown internal DC blade fuse with exact rated amperage. If fuses blow repeatedly upon power-up, internal power MOSFETs may have failed, requiring professional repair.

4. Verify Charging Current Setting:

• • Classic Homage UPS: Check DIP Switch 2 on the rear panel.
  • Bolt & TronDuo Hybrid Series: Access Program 11 (Prog 11) via the LCD menu.
  • What it means: If a 200 Ah–250 Ah tubular battery is connected but the rear DIP switch is left on 10 A instead of 20 A / 25 A, the battery charges too slowly to recover between 4-hour load shedding cycles, leading to progressive capacity starvation and chronic low battery voltage.
  • Fix: For classic models, set DIP Switch 2 to 20 A / 25 A (ON position) for large tubular batteries (150 Ah–250 Ah+). For Bolt/TronDuo models, access Program 11 (Prog 11) to set Prog 11 to 15 A–20 A on 24 V systems for a single 200 Ah tubular battery, or 20 A–30 A on 48 V systems for a single 200 Ah tubular battery (Prog 11 default 30 A). For larger or parallel banks, size at approximately 10% of total Ah capacity, ensuring not to exceed the inverter's maximum AC charge current. Follow the 0.10 C charging current rule detailed below.

5. Check for Corroded Battery Lugs:

• • Classic & Hybrid Models: Visually inspect battery terminals and cable lugs for white lead sulfate crystallization.
  • What it means: Lead sulfate buildup creates high electrical resistance, generating false voltage drops. The inverter charging sensor may prematurely read full float voltage (e.g. 14.4 V) while the electrolyte remains uncharged.
  • Fix: Always disconnect battery and AC mains and wait at least 5 minutes for internal discharge before servicing. A spanner accidentally placed across battery terminals can short hundreds of amps, causing explosive metal sparks and severe burns. Clean white lead sulfate buildup using warm water and baking soda. Apply a thin coat of petroleum jelly or terminal grease to prevent terminal overheating and high-resistance voltage drops.

Cause/fix table section

Inverter and Battery Side Checks

To resolve charging failures permanently, verify both the inverter-side parameters and battery-side maintenance conditions.

Inverter Side Checks (Settings)

1. Classic Homage Standalone UPS (Vertex, Hexa, Octa, Neon, Falcon, Axiom, Prime): Classic Homage units feature physical DIP switches on the rear panel. Always turn the inverter power OFF before adjusting physical DIP switches.

2. Bolt & TronDuo Hybrid Series (HBS and HTD Series): Bolt series inverters feature an LCD digital menu. To adjust parameters: Program numbering can vary across Homage Bolt/TronDuo hardware revisions and firmware releases, so always match the parameter by its setting name on the LCD (e.g. "Floating Charging Voltage", "Low DC Cut-off Voltage") rather than by program number alone.

1. Press and hold the ENTER button for 3 seconds until the program number flashes on the LCD.
2. Use UP and DOWN buttons to navigate program numbers (01 to 36).
3. Press ENTER to select parameter, UP/DOWN to modify, and ENTER to confirm. Press ESC to exit.

Battery Side Checks (Health and Maintenance)

Proper inverter-side pairing must be matched with physical battery maintenance for Phoenix TX (e.g. Phoenix Tubular TX-1800 tall tubular flooded 180 Ah @ C20 requiring 14.6 V / 29.2 V Bulk and 13.7 V / 27.4 V Float), AGS TR, Osaka, Daewoo Deep Cycle, Volta, and Exide tubular batteries.

1. Deep-Discharge Recovery: As identified in diagnosis step 2, if open-circuit voltage drops below 9.0 V (12 V) or 18.0 V (24 V), the inverter charging circuit locks out. Always disconnect battery and AC mains and wait at least 5 minutes for internal discharge before servicing. A spanner accidentally placed across battery terminals can short hundreds of amps, causing explosive metal sparks and severe burns. Connect an external automotive or bench charger to boost the battery above 11.0 V (for a 12 V battery) before reconnecting to the UPS. Note that opening the inverter casing may void warranty.
2. Corroded Terminals and Cable Lugs: Always disconnect battery and AC mains and wait at least 5 minutes for internal discharge before servicing. A spanner accidentally placed across battery terminals can short hundreds of amps, causing explosive metal sparks and severe burns. High resistance from lead sulfate buildup creates false voltage readings. Clean terminals with warm water and baking soda, then apply petroleum jelly.
3. Electrolyte Levels & Watering Schedule: Check electrolyte level indicators every 15–30 days during summer. Always wear safety glasses and rubber gloves when opening cell vent caps. Top up with pure distilled water only when the red float indicator drops below the green zone. Add water only, never acid. For a comprehensive maintenance calendar, review our tubular battery maintenance schedule.
4. Specific Gravity Checks & Stratification: Always wear eye protection when using an optical or hydrometer tester across all 6 cells per 12 V block, as hydrometer sampling draws corrosive acid out of the cell. Full charge specific gravity must read 1.240 to 1.280 S.G. at 25°C. A reading below 1.200 S.G. with float voltage indicates severe cell stratification requiring manual equalization (Program 30/31). Equalization drives cells into the hydrogen gassing region and must only be conducted in a well-ventilated space away from sparks and open flames. For specific brand recovery procedures, see our Phoenix battery low gravity troubleshooting and AGS battery terminal corrosion cleaning guide.
5. The 0.10 C Charging Current Rule: Always set the inverter charging current to approximately 10% of the battery total Ampere-hour (Ah) rating (e.g. 10 A for 100 Ah, 20 A for 180 Ah–200 Ah, 25 A–30 A for 250 Ah+). Charging at >0.20 C causes rapid electrolyte boiling, water loss, and plate warping. For standalone solar charging issues, consult our guide on solar battery not charging.

If grid instability persists, check for grid abnormalities via our guide on inverter grid overvoltage errors in Pakistan.

Safety: Important Warnings for Battery Charging

Working with inverters and tubular battery banks involves chemical, thermal, and high energy electrical hazards.

• Explosive Hydrogen Gas Hazard: Flooded tubular lead-acid batteries emit flammable hydrogen gas during bulk and equalization charging (>14.4 V per 12 V block at 25°C). Equalization charging deliberately drives the cell into the hydrogen gassing region. Batteries must be installed in a well-ventilated, shaded space away from gas water heaters, open flames, or electrical switches that can produce sparks.
• Battery Acid Corrosion & PPE: Always wear safety glasses and rubber gloves when checking tubular electrolyte specific gravity or topping up distilled water. Acid draws out during hydrometer testing; neutralize spills immediately with baking soda and water. Add water only, never acid.
• Terminal & Short Circuit Safety: Always disconnect battery and AC mains and wait at least 5 minutes for internal discharge before servicing. A spanner accidentally placed across battery terminals can short hundreds of amps, causing explosive metal sparks and severe burns.
• DC Reverse Polarity Destruction: Connecting battery cables in reverse (+ to -) instantly blows the internal DC blade fuses and can rupture primary input MOSFETs. Always verify battery polarity with a digital multimeter before bolting terminal lugs.
• High DC Bus Voltage Shock Hazard: Internal high-voltage capacitors on Bolt and TronDuo series store up to 500 V DC even after turning the power switch off. Always disconnect battery and AC mains and wait at least 5 minutes for internal discharge before servicing.

When to call a technician instead

If you have verified that DIP switches or LCD menus are configured correctly, battery open-circuit voltage is above 11.0 V (for a 12 V battery), terminals have been safely cleaned using insulated tools with all power killed, and grid input voltage is present, but your Homage UPS still refuses to charge, internal hardware may be damaged.

Do not attempt to:

• Replace internal power MOSFETs, control boards, or transformer assemblies without authorized bench equipment.
• Force charge a battery bank showing bulging casings, severe plate warping, or boiling under zero charging current.
• Bypass internal DC blade fuses or short safety circuits with uninsulated tools.

Internal component failures (such as auxiliary charging power supply failure, blown H-bridge MOSFETs, or current transducer drift) require authorized repair. Standard Homage units include a 1-Year to 2-Year official repair/replacement warranty backed by the nationwide R&I Electrical Appliances service center network (located across Karachi, Lahore, Rawalpindi, Islamabad, Faisalabad, Multan, and Peshawar). Contact an authorized service center for diagnostic repairs.
