Huawei Inverter Optimizer Fault Diagnosis

Key Takeaways

• An "Optimizer Fault" (Code 2081) on Huawei SUN2000-(2KTL-5KTL)-L1 inverters indicates a problem with a PV optimizer.
• The primary action for this fault is to contact your dealer or Huawei technical support.
• Opening the inverter or optimizers should only be performed by qualified professionals or trained personnel.
• Always ensure all AC and DC power is disconnected and wait for discharge before any physical inspection.

What does an "Optimizer Fault" mean on my Huawei SUN2000 inverter?

An "Optimizer Fault" on your Huawei SUN2000 inverter, specifically alarm code 2081 for the SUN2000-(2KTL-5KTL)-L1 series, means that one or more of the power optimizers connected to your solar panels are not functioning correctly. Power optimizers are devices installed at each solar panel to maximize energy harvest and provide module-level monitoring. When an optimizer fails, it can reduce the overall power output of your solar array or prevent the system from operating.

It is important to note that while the SUN2000-(2KTL-5KTL)-L1 user manual explicitly lists "Optimizer Fault" (Code 2081), the SUN2000L-(2KTL-5KTL) series manual does not include this specific fault code in its troubleshooting section. Therefore, this guide primarily addresses the SUN2000-(2KTL-5KTL)-L1 series.

Diagnosis

Diagnosing an "Optimizer Fault" on your Huawei SUN2000-(2KTL-5KTL)-L1 inverter typically involves checking the inverter's display or the monitoring app for the specific alarm code.

1. Check the Inverter Display or FusionSolar App:

• • Observation: Look for an alarm message or fault code displayed directly on the inverter's screen or within the FusionSolar App.
  • Meaning: If you see "Optimizer Fault" or alarm code 2081, it confirms the issue is related to a PV optimizer.

2. Note the Exact Alarm Code:

• • Observation: Confirm the alarm code is 2081.
  • Meaning: This code specifically points to an optimizer malfunction on SUN2000-(2KTL-5KTL)-L1 models.

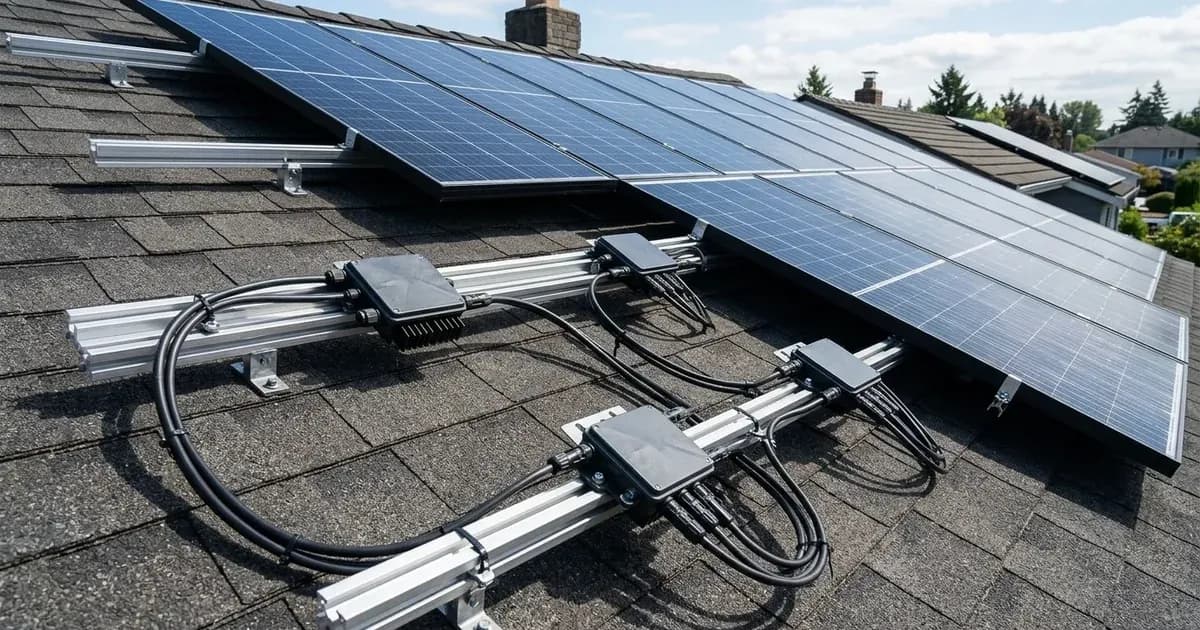

3. Visual Inspection of Optimizers and Wiring (from a safe distance):

• • Observation: From the ground, visually inspect the solar panels and any visible optimizer wiring for obvious physical damage, loose connections, or signs of overheating. Do not approach or touch the system while it is powered on.
  • Meaning: While the manual does not provide specific user-level fixes for this fault beyond contacting support, visible damage could indicate the cause of the optimizer failure.

4. Verify All Connections are Secure (after power-off):

• • Observation: After safely shutting down the entire solar system (AC and DC), and waiting the required discharge time, carefully check the connections between the solar panels and the optimizers, and between the optimizers and the string cables.
  • Meaning: Loose connections can sometimes cause communication errors or power interruptions, leading to fault reports. However, for an "Optimizer Fault" (Code 2081), the manual's primary recommendation is replacement, suggesting an internal component failure.

Cause/fix table section

Understanding the Optimizer Fault (Code 2081)

The "Optimizer Fault" (Code 2081) on Huawei SUN2000-(2KTL-5KTL)-L1 inverters signifies a problem with one of the power optimizers in your PV array. Power optimizers are designed to manage the maximum power point tracking (MPPT) for individual solar panels, improving overall system efficiency, especially in conditions with partial shading or module mismatch. When an optimizer fails, it can disrupt the power flow from its associated panel, leading to reduced energy production or a complete shutdown of the affected string.

The Huawei SUN2000-(2KTL-5KTL)-L1 user manual, dated May 2022, explicitly states the fix direction for this alarm: "Contact your dealer or Huawei technical support for optimizer replacement." This indicates that the fault is typically hardware-related and requires professional intervention rather than user-level adjustments or resets.

While the manual does not detail specific sub-causes for an optimizer fault, common reasons for optimizer failure can include:

• Internal electronic component failure.
• Damage due to environmental factors (e.g., extreme temperatures, moisture ingress).
• Physical damage during installation or from external impact.
• Firmware issues, though less common for a "fault" code that typically implies a hardware problem.

It is crucial to follow the manufacturer's recommendation and avoid attempting to repair or replace the optimizer yourself unless you are a qualified and certified technician. Unauthorized repairs can pose significant safety risks.

Safety

Working with solar inverters and PV systems involves high voltages and currents that can be lethal. Always prioritize safety.

• Qualified Personnel Only: Only qualified professionals or trained personnel, such as certified electricians, are allowed to perform installation, operation, and maintenance on Huawei SUN2000 inverters.
• Power Down and Wait: Before performing any physical checks or maintenance, ensure that the AC output switch and DC input switch on the inverter are turned off. High voltage exists even after power-off; the inverter takes 5 minutes to discharge to a safe voltage. Do not connect or disconnect power cables with power on.
• Burn Warning: The inverter enclosure and heat sink can become hot during operation. Do not touch these surfaces to avoid burns.
• Proper Grounding: Ensure the inverter is properly grounded according to local electrical standards.
• Electrical Connections: All electrical connections must comply with local laws and regulations. Do not work with power on during installation or troubleshooting.

When to call a technician instead

You should call a qualified technician or your solar installer immediately if your Huawei SUN2000-(2KTL-5KTL)-L1 inverter displays an "Optimizer Fault" (Code 2081). The user manual explicitly directs you to "Contact your dealer or Huawei technical support for optimizer replacement."

Maintenance, which includes opening the inverter or optimizers, should only be performed by qualified professionals or trained personnel. Doing so can:

• Expose you to dangerous high voltages.
• Cause further damage to the system.

A qualified technician has the necessary tools, training, and safety equipment to safely diagnose the specific optimizer that has failed and perform the required replacement, ensuring your system operates correctly and safely.
