Sungrow Sbr096 To Sbr256 Modular High Voltage Battery Setup Guide

Key Takeaways

• The battery metal enclosure and inverter chassis must be bonded to the main earthing terminal.
• CT clamps require specific orientation: arrows towards loads, away from the grid incomer.
• Shielded twisted-pair cabling is essential for RS485 communication.
• An MCS Certificate is mandatory for export tariffs and regulatory compliance in Great Britain.

General Installation Principles for Sungrow SBR Batteries

Installing a high-voltage battery system like the Sungrow SBR096 to SBR256 series requires adherence to strict electrical safety and regulatory guidelines. While specific wiring diagrams and sizing depend on your site's engineering drawings and local utility requirements, several general principles apply to ensure a safe and compliant installation in Great Britain.

The Sungrow SBR series is engineered for residential and commercial off-grid and grid-parallel energy storage systems. These systems are compatible with standard single-phase and three-phase electrical distribution systems.

Essential Safety and Earthing Requirements

Proper earthing (grounding) is critical for the safe operation of any electrical energy storage system. For Sungrow SBR batteries, specific bonding requirements must be met to protect against electrical hazards.

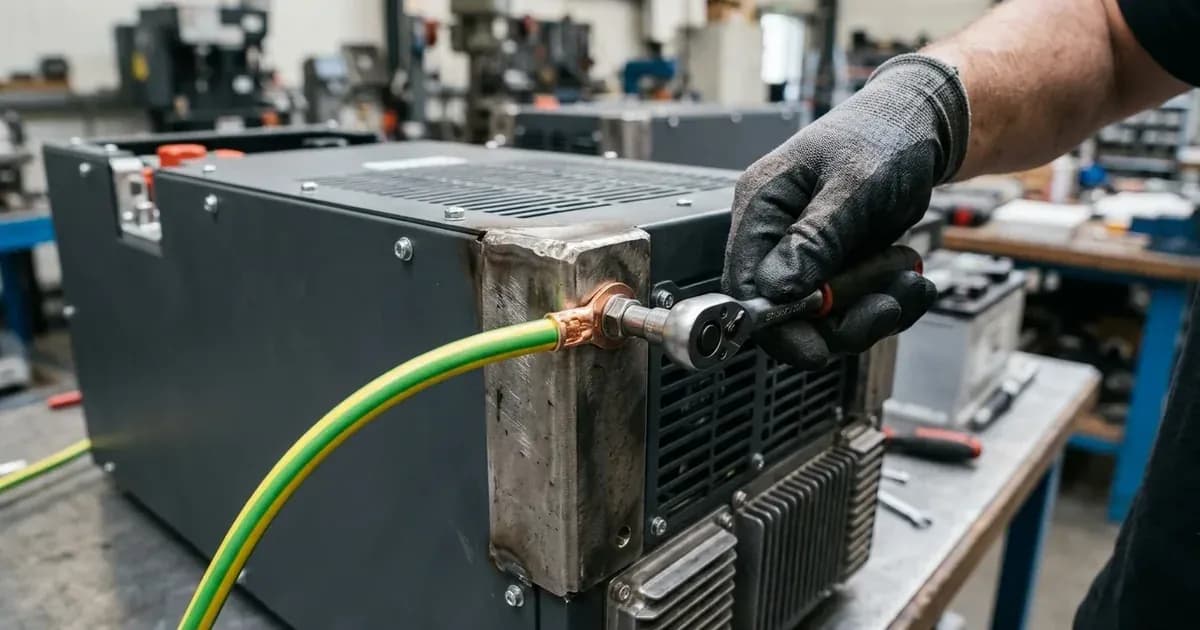

The inverter chassis ground and the battery metal enclosure must be bonded to the main installation earthing terminal. This creates a safe path for fault currents, protecting both equipment and personnel. All DC conductors, AC feeders, and auxiliary control cables must be installed in compliance with applicable national electrical codes. An accredited electrical engineer must verify these installations.

Current Transformer (CT) Clamp Installation

Current Transformer (CT) clamps are vital components for monitoring energy flow within your system. Correct installation ensures accurate readings and proper system operation, especially for grid-parallel systems managing export and import.

CT clamps must be installed with their arrows pointing towards the household loads, away from the grid incomer. This orientation allows the system to correctly measure consumption and export. Before installing CT clamps on live busbars, ensure complete AC circuit isolation and lock-out. This is a critical safety step to prevent electric shock.

Communication and System Integration

Effective communication between the battery system, inverter, and other components is essential for optimal performance and energy management. The Sungrow SBR system relies on robust communication protocols.

Maintain shielded twisted-pair cabling for communication lines. It is also necessary to verify proper RS485 communication baud rate settings to ensure reliable data exchange between the battery and the inverter. The ESS assistant dynamically manages battery charge and discharge based on grid tariffs and load, relying on this communication.

What you can check yourself, and what you cannot

As a homeowner, you can visually inspect the general condition of your battery system and ensure that no obvious damage has occurred. You can also monitor your system's performance through its display or app, looking for consistent energy flow and expected charging/discharging patterns.

However, any work involving the internal wiring, earthing connections, or communication settings of the Sungrow SBR battery system must be performed by an accredited installer or electrical engineer. This includes:

• Tightening or disconnecting terminals: Always kill power first, use insulated tools, and be aware that a spanner across a battery bank can short hundreds of amps.
• Opening the enclosure or replacing components: Isolate PV, battery, and AC breakers, wait the manual's capacitor-discharge time, and understand that opening the unit is authorised-service work.
• Verifying wiring compliance: Only a qualified professional can confirm that all DC and AC wiring meets national electrical codes.
• Adjusting communication settings: Incorrect baud rate settings can disrupt system operation.

If you observe negative power flow during high household consumption, this indicates an inverted CT clamp installation. While this symptom can be identified by a homeowner, the correction requires an accredited installer to safely reorient the clamps after isolating the AC circuit.

What the published sources do not tell you

Specific details regarding the internal architecture, stacking procedures, DC breaker wiring, or detailed fault codes for the Sungrow SBR096 to SBR256 series are not publicly available in the provided regulatory compliance documents. These details are typically found in manufacturer-specific engineering manuals or installation guides, which are often restricted to accredited installers.

The exact sizing of the battery system, its wiring, and specific commissioning steps are highly dependent on site-specific engineering drawings, the local utility connection capacity, and the manufacturer's equipment ratings. These are not standardised and vary significantly per installation.

Pre-commissioning checks, insulation resistance testing, and polarity verification are critical steps prior to final energization and utility permission to operate. While these are mandatory, the specific procedures are not detailed in general regulatory documents.
