Sungrow Sg33Cx To Sg125Cx Commercial Inverter Setup Guide

Key Takeaways

• Sungrow CX series inverters, including models SG33CX to SG125CX, are designed for commercial and industrial solar installations.
• Commissioning and monitoring are primarily managed through the iSolarCloud App and web portal.
• Integrated safety features include Smart I-V Curve diagnosis for string faults and DC AFCI for arc fault protection.
• Always observe a minimum 5-minute waiting period after DC disconnect to allow internal capacitors to discharge before any servicing.

Setting Up Your Sungrow CX Commercial Inverter

The Sungrow CX series, encompassing models like the SG33CX, SG50CX, SG110CX, and SG125CX, are multi-MPPT commercial string inverters. These units are engineered for commercial and industrial scale applications. They support both single-phase and three-phase electrical distribution systems.

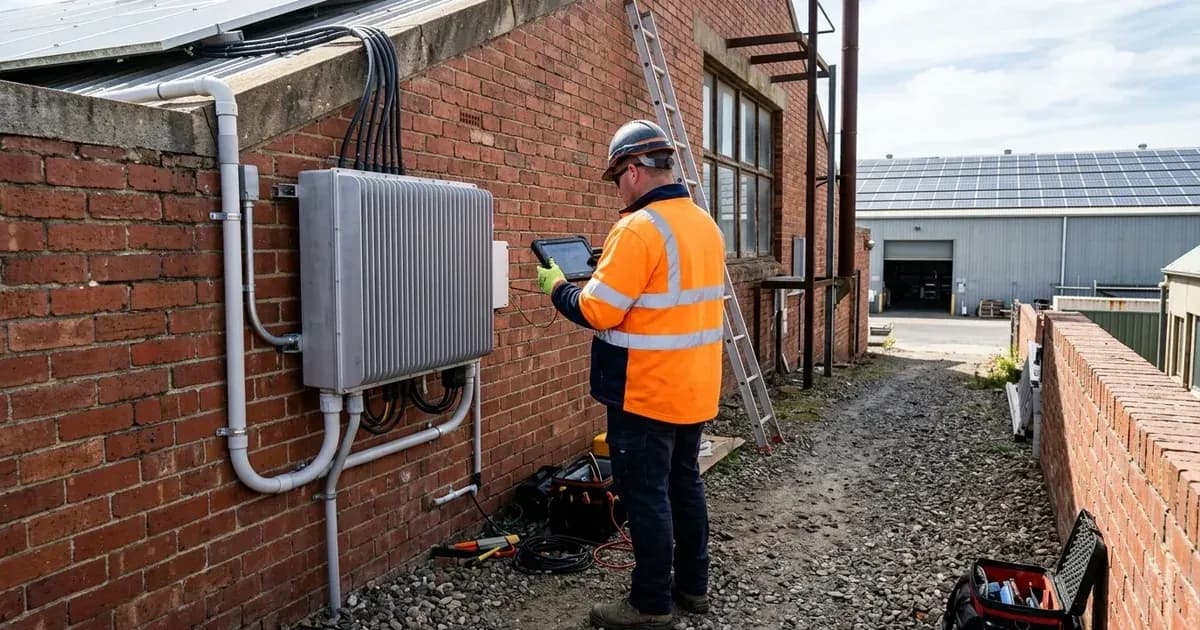

Commissioning, setting operating parameters, and cloud monitoring for these inverters are configured via the iSolarCloud App. This mobile application provides a user-friendly interface for initial setup and ongoing management. The multi-MPPT commercial architecture of these inverters allows them to handle complex commercial roof orientations efficiently.

Understanding Sungrow CX Inverter Safety Features

Sungrow CX inverters integrate several advanced safety and diagnostic features to ensure reliable operation and protection.

Smart I-V Curve Diagnosis

The inverters incorporate automated Smart I-V curve scanning. This feature is used to detect string faults, shading, and module degradation across the solar array. This diagnosis can identify full string health issues in under 10 minutes.

Integrated DC AFCI Arc Fault Protection

For electrical safety, the inverters provide automated rapid shutdown. This complies with NEC 690.12 upon AC grid or emergency switch initiation, protecting against potential arc faults.

Surge Protection

Sungrow CX inverters include Type 1+2 DC and AC Surge Protection. This multi-layer protection helps to safeguard the system from electrical surges.

Anti-Islanding Protection

The inverters feature Certified Anti-Islanding Protection. This ensures compliance with international microgeneration safety and grid protection standards, preventing the inverter from feeding power into a de-energised grid section.

Essential Safety Procedures for Sungrow CX Inverters

Working with high-voltage electrical equipment requires strict adherence to safety protocols.

Safe DC Disconnect and Capacitor Discharge

Before performing any maintenance or inspection on the inverter, it is crucial to ensure it is de-energised. Switch off the DC battery isolator. Then, wait at least 5 minutes for internal capacitors to discharge. Failure to observe this waiting period can result in serious electrical shock.

Protective Enclosure Earth Bonding

It is mandatory to bond the inverter chassis ground and any battery metal enclosure to the main installation earthing terminal. This protective earthing is vital for electrical safety, providing a safe path for fault currents.

What You Can Check Yourself, and What You Cannot

As an owner or operator, certain checks can be performed, while others require the expertise of an accredited installer.

What You Can Check

• iSolarCloud Monitoring: You can use the iSolarCloud App or web portal to monitor system performance, check for alerts, and review operational data.
• Visual Inspection: Periodically inspect the inverter's exterior for any visible damage, loose connections, or obstructions to ventilation. Ensure all warning labels are intact.

What You Cannot Check

• Internal Components: Opening the inverter enclosure is authorised-service work only. It exposes high-voltage components and can void warranties.
• Wiring and Connections: Physical wiring, DC string connections, and AC grid connections should only be inspected or modified by a qualified electrician or accredited installer.
• Grid Protection Settings: Grid protection standards and settings are critical for grid stability and safety. These must be configured and verified by an accredited installer according to local Distribution Network Operator (grid operator) requirements.
• Firmware Updates: While remote firmware management is supported via the VRM cloud portal, actual updates should be managed by trained personnel to ensure compatibility and correct implementation.

What the Published Sources Do Not Tell You

While official documentation provides key specifications and features, some details are not universally published or vary by context.

• Specific Grid Connection Requirements: Detailed grid connection requirements, such as specific voltage and frequency tolerances or export limits, can vary significantly depending on your local Distribution Network Operator (grid operator) in Great Britain. These are typically outlined in your grid connection agreement.
• Proprietary Internal Diagrams: Detailed internal wiring diagrams and component layouts are generally considered proprietary information by Sungrow and are not publicly available.
• Advanced Troubleshooting Steps: While iSolarCloud offers remote cloud fleet diagnostics, complex troubleshooting or repair procedures often require specific training and access to manufacturer-specific tools or documentation not available to the general public.
• Exact Installation Dimensions and Weight: While official documentation covers technical specifications, precise physical dimensions and weight for each specific model (SG33CX, SG50CX, SG110CX, SG125CX) are typically found in the individual product datasheets or installation manuals, which may not be universally accessible or consolidated.
