Weco 4K4 And 5K3 Dual Platform Battery Setup Guide

Key Takeaways

• Always ensure complete AC circuit isolation and lock-out before working on live busbars.
• Bond the inverter chassis ground and battery metal enclosure to the main earthing terminal.
• Install Current Transformer (CT) clamps with arrows pointing towards household loads, away from the grid incomer.
• Maintain shielded twisted-pair cabling and verify RS485 baud rate settings for communication.

Understanding Energy Storage System Installation Principles

Installing a battery energy storage system (ESS) involves adherence to fundamental electrical and safety principles. While specific battery models, such as the WeCo 4k4 and 5k3, have their own detailed installation guides, the underlying requirements for safe and compliant operation are universal. These systems are engineered for residential and commercial off-grid and grid-parallel energy storage systems worldwide. They are compatible with standard single-phase and three-phase electrical distribution systems globally.

This guide outlines the general principles for safely integrating an ESS, focusing on earthing, AC isolation, and communication, which are critical for any battery setup.

Essential Safety and Earthing Procedures

Safety during installation is paramount. Before any work begins on electrical components, particularly those connected to the grid, it is crucial to take preventative measures.

Bond inverter chassis ground and battery metal enclosure to the main installation earthing terminal. This step creates a safe path for fault currents, protecting both equipment and personnel. Proper earthing helps prevent electric shock and ensures the system operates within safety standards.

Current Transformer (CT) Clamp Installation

Current Transformers (CTs) are vital components for monitoring energy flow within an ESS. Correct installation is essential for accurate system operation and to avoid misreadings.

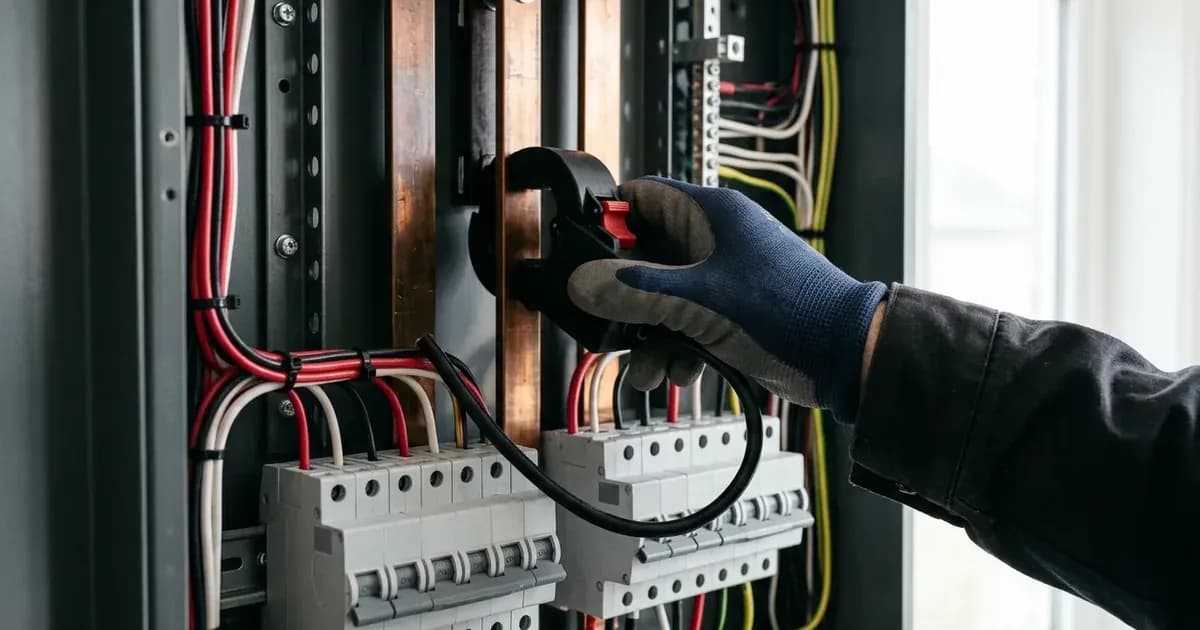

Install Current Transformer clamps with arrows pointing towards the household loads away from the grid incomer. This orientation ensures that the system correctly measures consumption and export. If the CT clamps are installed incorrectly, you may observe negative power flow during high household consumption. This indicates an inverted CT clamp installation, which needs to be corrected for the ESS to function as intended.

Safety Warning: Ensure complete AC circuit isolation and lock-out before installing CT clamps on live busbars. Working on live circuits without proper isolation poses a severe risk of electric shock.

Communication and System Management

Effective communication between the battery, inverter, and energy management system is key to optimal performance.

Maintain shielded twisted-pair cabling and verify proper RS485 communication baud rate settings. RS485 is a common communication protocol used in battery systems. Shielded cabling helps prevent electromagnetic interference, ensuring reliable data transfer. Correct baud rate settings ensure that all devices can communicate at the same speed.

The ESS assistant dynamically manages battery charge and discharge based on grid tariffs and load. This intelligent management optimises energy use, potentially reducing electricity bills by charging when electricity is cheap and discharging when it is expensive or when household demand is high.

What You Can Check Yourself, and What You Cannot

As a homeowner, you can perform visual checks and ensure basic settings are correct, but certain tasks require accredited professionals.

What you can check:

• Visual inspection of CT clamp orientation: Verify that the arrows on your CT clamps point towards your household loads, away from the grid incomer.
• Cable routing: Ensure communication cables are not damaged and appear to be shielded twisted-pair.
• Basic display readings: Observe if the system's display shows expected power flows (e.g., positive for consumption, negative for export, with correct CT orientation).

What you cannot (and should not) do yourself:

• Electrical wiring: Any work involving AC or DC wiring, especially on live busbars or within the main electrical panel, must be performed by a qualified and accredited electrician.
• Earthing connections: Modifying or installing earthing connections requires professional expertise to ensure compliance with national electrical codes.
• Inverter or battery internal settings: Do not attempt to change advanced settings within the inverter or battery management system (BMS) unless specifically instructed by the manufacturer and you are a qualified technician. Incorrect settings can damage the system or create safety hazards.
• Troubleshooting complex faults: If the system displays fault codes or behaves unexpectedly, consult your installer or a certified technician.

What the Published Sources Do Not Tell You

The provided general installation principles do not include specific product details for particular battery models, such as the WeCo 4k4 or 5k3. This means:

• Specific battery voltages or capacities: published guidance does not contain nominal voltages (e.g., 48V), maximum charge/discharge currents, or energy capacities (e.g., four-point-four kWh or five-point-three kWh) for any specific battery model.
• Dual-voltage configuration instructions: Details on how to configure batteries for low-voltage (e.g., 48V) or high-voltage series operation are not included. These are specific to the battery manufacturer's instructions.
• Detailed wiring schematics: While general principles for earthing and CT clamp installation are given, specific wiring diagrams for connecting particular battery models to inverters are not provided.
• Specific RS485 baud rates or communication protocols: official technical guidance mentions verifying RS485 settings but does not provide the actual baud rates or specific communication protocols required for particular battery and inverter combinations. These details are found in the manufacturer's product manuals.
• Battery-specific fault codes or troubleshooting steps: No diagnostic codes or specific troubleshooting procedures for battery malfunctions are listed.
• Installation requirements for Building-Integrated PV (BIPV) systems or in-roof mounting kits: While official technical guidance mentions these, they are not directly related to battery setup and their specific installation requirements (e.g., MCS 012 certification for wind uplift) are outside the scope of battery system principles.
• MCS Certificate details for export tariffs: official documentation notes that an MCS Certificate is required for export tariffs, but it does not detail the process for obtaining one or the specific requirements for tariff access.

For these specific details, always refer to the manufacturer's installation manual for your particular battery and inverter models, and consult with an accredited installer.
