Smart Meter Not Showing Export Solar Reading: UK Diagnostic and Fix Guide

Key Takeaways

• The Smart Export Guarantee (SEG) enables small-scale generators to receive payments from electricity suppliers for electricity which they export back to the National Grid, providing certain criteria are met.
• In Great Britain, eligible systems include solar photovoltaic installations with a total installed capacity (TIC) of no more than 5MW, or no more than 50kW for micro-CHP.
• Generators are entitled to payments based upon actual meter readings, and any SEG tariff offered must always remain above zero pence per kilowatt-hour.
• If your physical smart meter display shows zero export or omits the export register, the issue usually stems from keypad navigation steps, uncommissioned export MPANs, or dormant firmware rather than a broken solar array.
• Electrical safety warning: Never tamper with the sealed service head, cutout fuse, or terminal cover of your smart meter; testing within distribution boards presents lethal mains alternating current shock hazards and must only be handled by accredited personnel.

1. Why your smart meter is not showing solar export readings

For thousands of UK homeowners who install rooftop solar panels, expecting the newly installed smart meter to display exported green energy automatically can lead to confusion. You check your In-Home Display (IHD) or look at the main meter box outside, only to find the screen either displays cumulative import kilowatt-hours or reads zero export despite a sunny afternoon.

Understanding the administrative and statutory context clarifies why this occurs. Under UK legislation, This Order may be cited as the Smart Export Guarantee Order 2019. This framework establishes that The specified maximum capacity is 5 megawatts of total installed capacity for qualifying renewable generation. Specifically, qualifying technologies include Solar photovoltaic (solar PV) alongside wind, hydro, and micro-CHP. Under this regime, a “SEG licensee” means a person who is a holder of a licence under section 6(1)(d) of the Electricity Act 1989.

Crucially, All generators who wish to receive payment for the electricity which they export back to the National Grid will need to apply to a SEG licensee (an electricity supplier which offers a SEG tariff). Furthermore, Article 5 requires the Authority to issue guidance on the operation of the SEG, and to keep the guidance under review.

Under these rules, Any SEG tariff offered must always remain above zero. Most importantly for metering, Generators are also entitled to payments based upon actual meter readings, even if some suppliers offer deals with alternative payment models. Homeowners are not restricted to their current utility: You can apply for a SEG tariff with any SEG licensee – your SEG licensee does not need to be the same company as your current energy supplier.

However, a smart meter does not automatically begin transmitting export readings simply because panels are mounted on your roof. The meter must be programmed with an active export register and linked to an export Meter Point Administration Number (MPAN).

2. Metrology standards and smart meter display requirements

Under British metering law, utility meters must satisfy rigorous metrological performance. As stated in statutory regulations, Indication of the result shall be by means of a display or hard copy. Furthermore, The indication of any result shall be clear and unambiguous and accompanied by such marks and inscriptions necessary to inform the user of the significance of the result. For consumers and meter readers, Easy reading of the presented result shall be permitted under normal conditions of use.

When a smart meter is installed in a UK home, its default screen cycle is configured exclusively for electricity import (measuring power delivered from the distribution grid to your consumer unit). Because export metering was historically secondary for non-generating homes, the export register (OBIS code 2.8.0 or 9.8.0) is often tucked inside a sub-menu or requires manual button presses on the physical meter keypad.

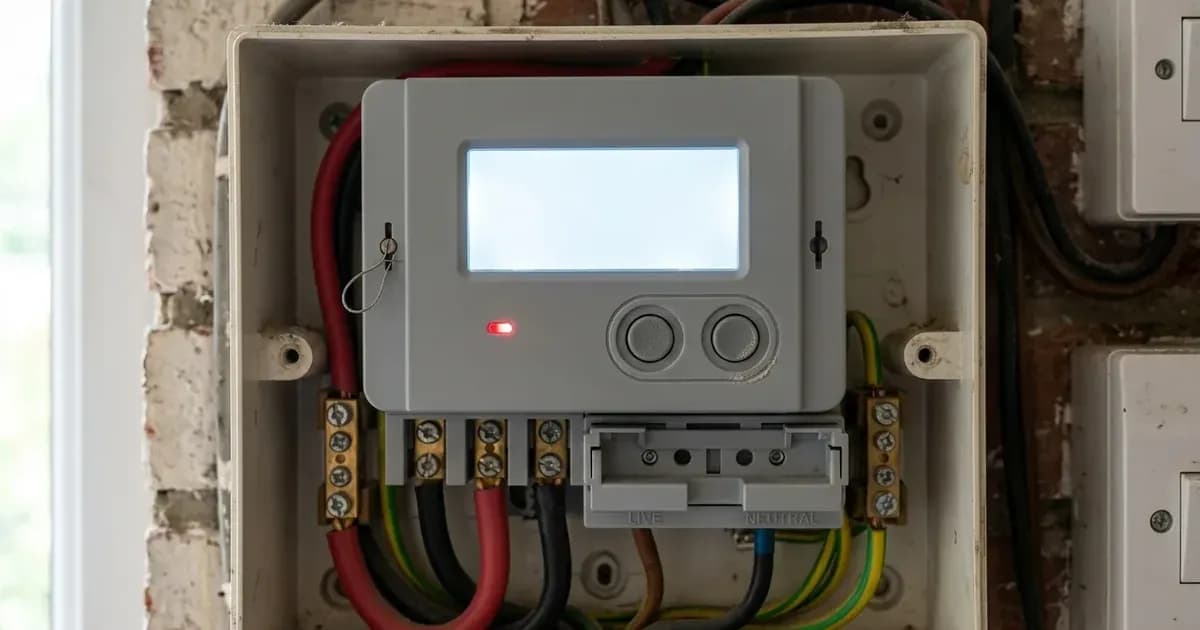

3. Step-by-step keypad navigation across common UK smart meters

To verify whether your smart meter has actually recorded export power or is merely hiding the reading, you must access the physical meter display. The table and steps below guide you through the major meter models deployed across England, Scotland, and Wales.

Aclara SGM Series (SMETS2)

1. Locate the two buttons on the front of the meter face (Button A on the left, Button B on the right).
2. Press Button B repeatedly until the display menu shows "Customer Access" or "Total Active Export".
3. Press Button A to enter the sub-menu.
4. The display will show cumulative export in kWh (labelled "Exp kWh" or "TOU Export").

EDMI meters (SMETS2)

1. The EDMI meter features an OK button and directional navigation buttons.
2. Press the OK button to wake up the backlit LCD.
3. Use the arrow buttons to scroll down through the main menu to "Billing Data" or "Export Energy".
4. Press OK to select. The register will display your total exported energy in kWh.

Landis+Gyr meters (SMETS1 / SMETS2)

1. On Landis+Gyr SMETS2 meters, press the green 'B' button to activate the display backlight.
2. Continue pressing 'B' until the screen cycles past "Credit Status" and "Tariff Info" to "Total Act Export".
3. The register value indicates your cumulative exported solar energy. On some older SMETS1 units, pressing button 0 or button 9 cycles to register 08 (Export).

Secure Liberty meters

1. The Secure Liberty keypad features numbers 0 to 9.
2. Press button 9 on the keypad.
3. The screen will cycle through test values. Look for the display showing "Total Active Export" followed by the kWh reading.

If pressing these buttons reveals a cumulative figure (for example, a positive kilowatt-hour reading), your meter is correctly recording export power! The issue is simply that the data has not yet synced to your energy supplier app or In-Home Display.

4. Diagnosing common export reading failures

If cycling through the meter registers reveals a reading of 0.0 kWh after weeks of bright sunshine, or if the export register is entirely absent from the screen, work through the following root causes:

Cause 1: Uncommissioned Export MPAN

When an installer fits a solar PV array, they commission the inverter and submit a G98 or G99 notification to your regional Distribution Network Operator (DNO). However, the DNO does not create your export MPAN automatically. You must submit an application to a licensed SEG supplier. The supplier contacts the DNO to generate an export MPAN (a unique 13-digit identifier starting with the same distribution ID as your import supply). Until this export MPAN is formally created and configured over the Data Communications Company (DCC) smart network, the meter will not log or submit billing export data.

Cause 2: Non-Communicating Communications Hub (HAN/WAN Issues)

SMETS2 meters communicate with the central national smart grid network via a Communications Hub attached to the top of the electricity meter. The hub features LED status lights (WAN, HAN, MESH, GAS). If the WAN light is flashing slowly or off, the meter cannot send export readings to your supplier. While local metrology still records power passing through the meter coils, your supplier will see zero data until DCC cellular or mesh signal is restored.

Cause 3: SMETS1 Meter Awaiting DCC Migration

First-generation smart meters (SMETS1) installed before 2019 often lost their smart functionality when switching suppliers. While millions of SMETS1 meters have been enrolled onto the DCC central network, some remain in "dumb" mode. If your SMETS1 meter cannot record bi-directional power flows, your energy supplier is legally obliged under the SEG scheme to replace it with a modern SMETS2 meter free of charge when you sign up for an export tariff.

Cause 4: In-Home Display (IHD) Limitations

Many homeowners assume their smart meter is faulty because their portable In-Home Display does not show solar export. Standard IHD units (such as Chameleon or Geo monitors) are programmed exclusively to receive Home Area Network (HAN) telemetry for import electricity and gas tariffs. They do not calculate net solar export or inverter generation. Relying on an IHD to verify export is misleading; always check the physical meter face or your online supplier portal.

5. What to do if your meter fails to record export

If your meter remains stuck on zero or refuses to display the export register after following the steps above:

1. Take clear photographs: Capture images of the physical meter serial number, current date and time on screen, cumulative import reading, and the blank or zero export screen.
2. Contact your SEG licensee: Provide your export application reference number and request an Over-The-Air (OTA) meter configuration push. The supplier can send a DCC command to activate the export registers.
3. Request a meter technical check: If the meter has a metrological fault, the supplier must dispatch an engineer to test or replace the meter under national electrical wiring regulations and the Measuring Instruments Regulations.
4. Safety reminder: Never attempt to dismantle the meter or disconnect the service cables. The mains alternating current intake carries high prospective fault currents capable of severe injury or fatal flashovers. Leave all physical meter work to accredited meter operators.
