UK SolaX X1-Boost G4 String Inverter Guide

In domestic solar photovoltaic applications where battery energy storage is not immediately required—or where budget constraints prioritise maximizing rooftop solar yield at lowest capital expenditure—pure grid-tied string inverters remain an exceptionally reliable and cost-effective choice. However, residential British rooftops present challenging environmental conditions, including complex gables, dormer shadow profiles, and extended cloudy periods with low irradiance.

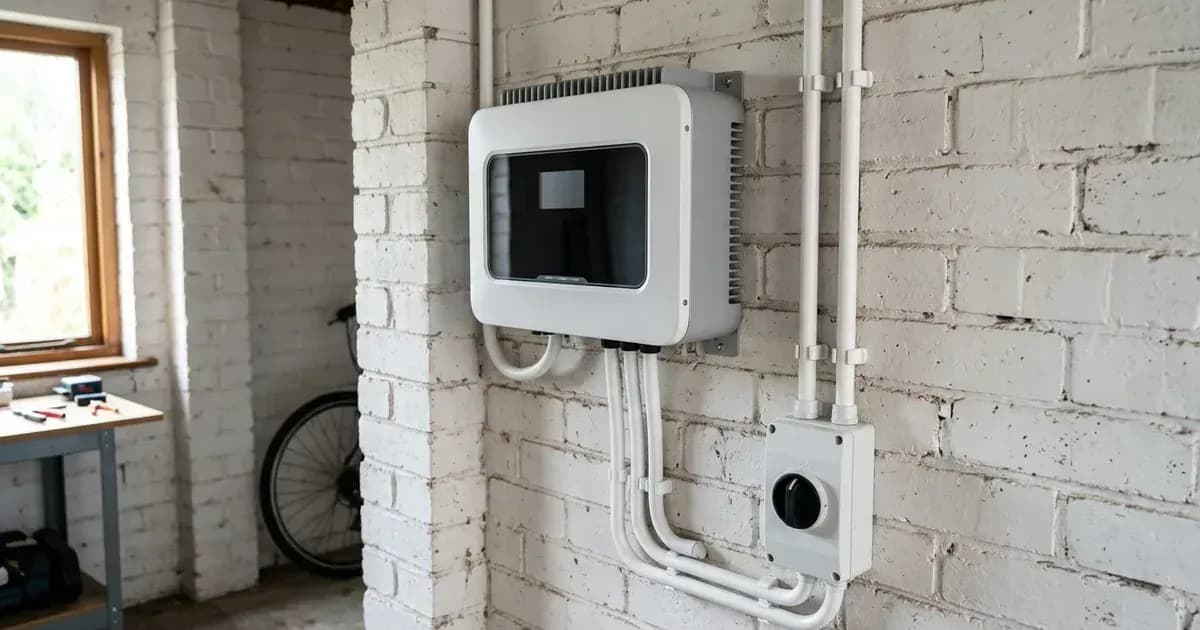

The SolaX X1-Boost G4 (Generation 4) is a single-phase residential grid-tied string inverter platform designed specifically for high-efficiency solar harvesting. Spanning lower-power models (2.5kW / 3.0kW / 3.3kW / 3.6kW) and higher-capacity variants (4.2kW / 5.0kW / 6.0kW), the X1-Boost G4 combines an ultra-low 50V start-up voltage, dual independent Maximum Power Point Trackers (MPPT), and built-in shade mitigation algorithms.

<Callout type="info" title="Key Takeaways: SolaX X1-Boost G4 Inverter">

• Power Span: Covers single-phase ratings from 2.5kW, 3.0kW, 3.3kW, and 3.6kW up to 4.2kW, 5.0kW, and 6.0kW.
• DC Input Architecture: Engineered for DC Input: 200% oversizing, 16A current, 50V startup voltage.
• Shade Optimization: Features In-built global MPP scan for higher yield efficiency under partial tree or chimney shading.
• Dynamic Grid Management: Incorporates an In-built export control function to satisfy statutory DNO export limitations.
• Safety Integration: Offers integrated DC AFCI protection (Optional) and AC/DC built-in Type II SPD (Optional) and I-V curve diagnosis.
• Grid Compliance: Certified under statutory British standards including IEC61727, EN50549, G98/G99, AS 4777.2, VDE4105, CEI 0-21, VFR, PPDS, TOR.
• Sector Coupling: Fully Home EV Charger and Heat Pump Solution adaptable for electrified domestic heating and transport.
  </Callout>

Electrical Architecture & Ultra-Low Start-Up Performance

A recurring challenge for domestic solar installations across the UK is early morning and late evening solar harvesting. Standard residential string inverters frequently require high DC string voltages before the MPPT tracking circuitry activates. During overcast winter days, small domestic strings on a garage or extension may struggle to reach these high activation thresholds.

The SolaX X1-Boost G4 resolves this with advanced DC input engineering:

• 50V Startup Voltage: The inverter activates and begins exporting power at just 50V, dramatically extending daily generation hours during autumn and winter.
• 16A Input Current: Each MPPT tracker accepts up to 16A of continuous direct current. This accommodates high-power modern monofacial and bifacial photovoltaic modules without suffering current clipping during peak summer midday generation.
• 200% DC Oversizing: Installers can connect arrays with total peak capacity up to twice the inverter's AC nameplate rating, ensuring maximum generation during low-light conditions.

Global MPP Scanning & Shadow Mitigation

Domestic roofs in residential British neighbourhoods frequently suffer from partial shading caused by chimneys, dormer gables, vent pipes, television aerials, or adjacent mature trees. When a shadow falls across part of a solar string, the bypass diodes in shaded modules activate, creating multiple peaks on the string's power-voltage (P-V) curve: a "local" lower-power peak and a "global" maximum power point.

Conventional string inverters can become trapped tracking a local peak, resulting in substantial loss of solar yield. The X1-Boost G4 overcomes this through its In-built global MPP scan for higher yield efficiency. The inverter periodically sweeps the entire voltage window of the photovoltaic array, identifying the true global peak and adjusting string voltage accordingly. This eliminates the need for expensive DC optimizers on moderately shaded domestic arrays, saving homeowners hundreds of pounds in upfront MLPE equipment costs.

```
P-V CURVE WITH PARTIAL SHADING
Power (W)
▲
│ True Global Maximum (Inverter Tracks Here)
│ ╭───╮
│ Local Peak │ │
│ ╭───╮ │ │
│ │ │ │ │
│ │ │ │ │
└────────────┴───┴────┴───┴────────────────► Voltage (V)
Trapped Zone Global MPP Scan Target
```

Integrated Electrical Protection: AFCI & Type II SPDs

Safety engineering on domestic rooftop solar systems has come under increased regulatory scrutiny. Direct current arcs occurring within roof-mounted DC isolators, module junction boxes, or pinched MC4 connectors generate intense heat capable of igniting timber roof rafters.

The X1-Boost G4 provides advanced protective safety options:

• DC AFCI Protection: With integrated DC AFCI protection (Optional), the inverter's onboard digital signal processor analyzes DC current waveforms for high-frequency noise signatures characteristic of electrical arcing. Upon detecting an arc fault, the inverter shuts down within milliseconds, de-energizing the circuit before thermal ignition can occur.
• Type II Surge Protection: To safeguard sensitive power electronics against lightning-induced grid surges, the unit supports AC/DC built-in Type II SPD (Optional) and I-V curve diagnosis, ensuring full alignment with statutory overvoltage protection mandates.

UK Grid Interconnection: ENA G98 vs G99 Rules

For UK residential grid connection, the X1-Boost G4 model rating determines the applicable regulatory pathway under Energy Networks Association rules:

• Models up to 3.6kW (X1-Boost-2.5 to X1-Boost-3.6): Fully certified for fast-track installation under ENA Engineering Recommendation G98. Single-phase systems exporting no more than 3.68kW (16A) can be commissioned immediately under the "fit and inform" statutory process, with DNO notification submitted within 28 days.
• Models above 3.6kW (X1-Boost-4.2, 5.0, and 6.0): Require formal prior connection application to the local DNO under ENA EREC G99. If the local low-voltage network is capacity-constrained, installers can activate the inverter's In-built export control function alongside an approved energy meter to limit export to 3.68kW while maintaining full 5kW to 6kW generation capacity for on-site self-consumption, home EV charging, and heat pump operation.
