Sunsynk RCD Nuisance Tripping Explained

Key Takeaways

• RCD nuisance tripping with a Sunsynk inverter often points to an electrical imbalance or excessive earth leakage within the property.
• The Earth-Neutral bond is critical for safety and changes the inverter's electrical classification.
• Activating "Signal Island Mode" in battery settings is necessary for the Earth-Neutral bond to function during grid outages.
• Diagnosis and repair of RCD tripping issues require a registered electrician to ensure compliance and safety.

What is RCD Nuisance Tripping?

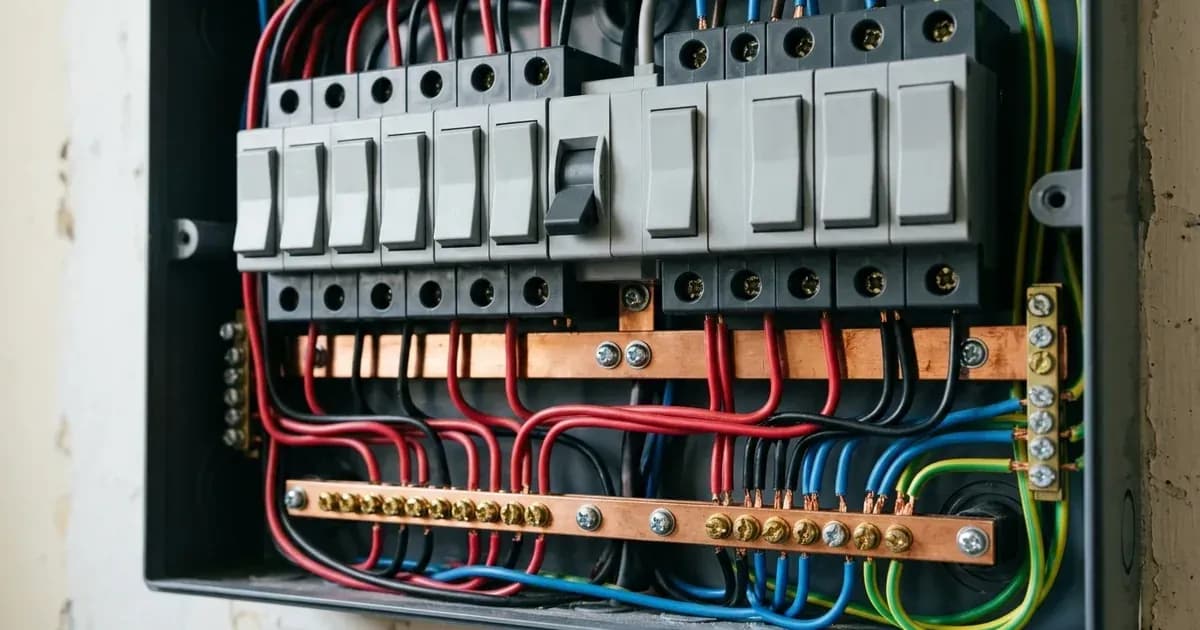

If your residual current device (RCD) or residual current breaker with overcurrent protection (RCBO) trips frequently after installing a Sunsynk inverter, it indicates a problem with your electrical installation. RCDs are safety devices designed to detect an imbalance between the current flowing into and out of a circuit. When this imbalance, known as earth leakage, exceeds a certain threshold, the RCD trips to prevent electric shock.

Sunsynk states that RCD or RCBO nuisance tripping is caused by an "Imbalance in electrical circuitry of the property, or total Earth Leakage of sub-circuits exceeding RCD sensitivity." This means that either there is a fault causing current to leak to earth, or the cumulative leakage from various appliances and circuits in your property is too high for the RCD's sensitivity.

The Role of the Earth-Neutral Bond

A critical aspect of safely integrating a solar inverter into your home's electrical system, especially in South Africa where load-shedding is common, is the Earth-Neutral (E-N) bond. This bond is essential for the inverter to operate safely when disconnected from the grid, such as during a power outage.

The purpose of the E-N bond is "To change the classification of a Sunsynk Inverter from a Class II to a Class I an Earth-Neutral Bond must be created." This reclassification ensures that protective measures, like RCDs, function correctly even when the inverter is operating in island mode (off-grid).

Activating the Earth-Neutral Bond

For most Sunsynk inverters, the E-N bond is activated through specific settings:

• Signal Island Mode: "To activate the Earth-Neutral Bond when GRID power is lost Signal Island Mode MUST be selected in the battery settings." This ensures the bond is established when the inverter transitions to off-grid operation.
• Sunsynk Elite: "In the Sunsynk Elite Model, there is an automatic Earth Neutral Bond for when the Grid suffers an outage." Additionally, for the Elite model, "the ATS Port Switches must be in the ‘ON’ position."
• Parallel Installations: "When installing in parallel the Earth-Neutral bond relay should only be connected to the Master inverter."

Some inverter models may have the E-N bond built-in, while others use external hot or dry contacts to create this bond. A dry contact relay uses a Normally Closed contact on the LOAD side, which opens when the grid is active and closes when grid power is lost. Hot contacts use pins labelled 'hot contacts' or L and N in the relevant manual.

What you can change yourself, and what you cannot

While you can check the inverter's display for error codes or warning messages, and confirm that "Signal Island Mode" is selected in the battery settings, most issues related to RCD nuisance tripping are electrical in nature.

You cannot change grid-protection settings or work on the main electrical installation yourself. In South Africa, any work on the main electrical system, including earthing and bonding, must be carried out by a registered person. This ensures compliance with local standards like NRS 097-2-1 and SANS 10142-1, and is required for the issuance or validity of a Certificate of Compliance (CoC). Attempting to alter these settings or components without proper qualification can be dangerous and may invalidate your CoC.

For any persistent RCD tripping, or if you suspect an issue with your Earth-Neutral bond, you must contact a registered electrician. They can diagnose the root cause, which may involve checking for actual earth faults, assessing cumulative earth leakage, or verifying the correct implementation of the E-N bond. You can learn more about the importance of professional installation and certification in our guide to the electrical CoC for solar in South Africa.

What the published sources do not tell you

The Sunsynk documentation provides valuable insights into the causes of RCD nuisance tripping and the importance of the Earth-Neutral bond. However, it does not offer specific guidance on several aspects crucial for South African installations:

• RCD Sensitivity: The documentation does not specify recommended RCD milliamp sensitivities (e.g., 30mA) for use with Sunsynk inverters.
• Earthing System Taxonomy: There is no information on different earthing system types (e.g., TN-C-S, TN-S, TT) or their implications for inverter installations.
• Discrimination or Selectivity: The corpus lacks guidance on how to achieve proper discrimination or selectivity between RCDs in a complex electrical system, which is important to prevent a single fault from tripping multiple protective devices.
• SANS 10142-1: The primary South African standard for electrical installations, SANS 10142-1, is not referenced or detailed in the provided documentation.
• RCD/RCBO Types: Specific guidance on the suitability of different RCD/RCBO types (e.g., Type A, Type B) for use with Sunsynk inverters is not provided.
• "Ramp Test": The documentation mentions a "Ramp Test of the Earth Leakage" but does not provide details on how to perform this test.

These omissions highlight the need for a registered South African electrician who is familiar with local regulations and best practices to ensure a safe and compliant installation.
