Weco Cluster Controller And Inverter Interfacing Guide

Updated 6 September 2026 · By SolarNevs Research Desk, Dealer surveys + verified sources · 1 source · Method ↗

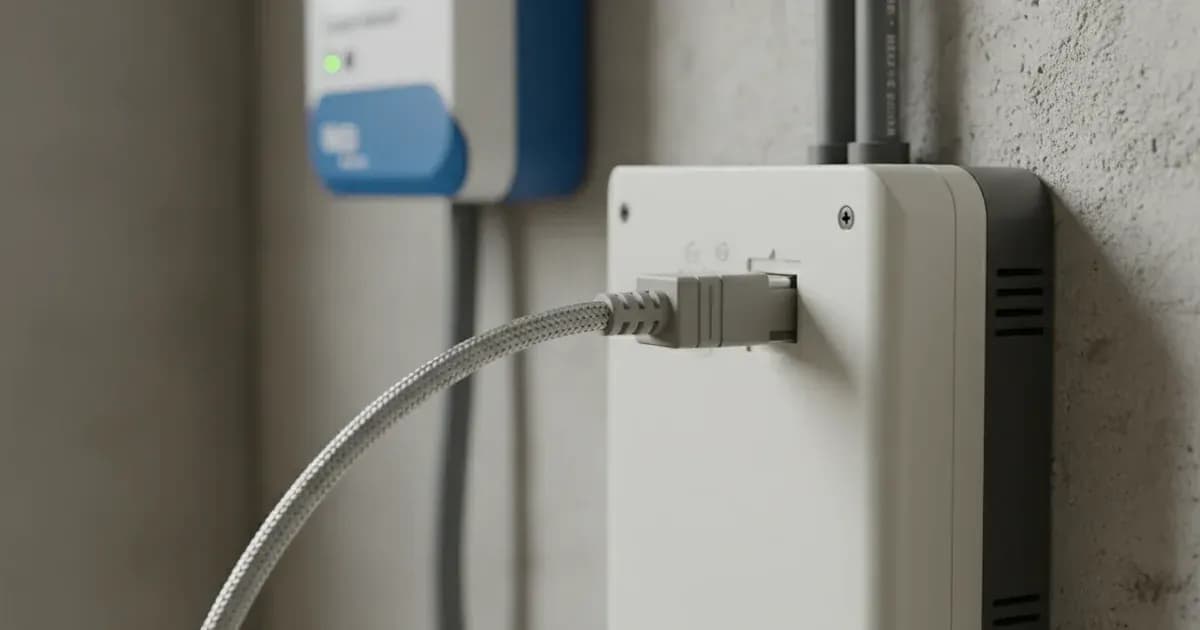

A close-up of a shielded twisted-pair cable connecting to an inverter's communication port, with a WeCo Cluster Controller visible in the background — SolarNevs spec card

Key Takeaways

  • The WeCo Cluster Controller, like other energy storage systems, must comply with international microgeneration safety and grid protection standards.
  • Correct earthing of the inverter chassis and battery enclosure to the main installation earthing terminal is a fundamental safety requirement.
  • Accurate installation of Current Transformer (CT) clamps, with arrows pointing towards loads, is crucial for correct power flow measurement.
  • Maintaining shielded twisted-pair cabling and verifying RS485 baud rate settings are essential for reliable communication between devices.

Understanding the WeCo Cluster Controller and its Role

System Component / Step

Technical Requirement & Rule

Functional & Safety Objective

ESS Controller Integration

Configured as ESS assistant for 1-phase / 3-phase systems

Dynamically manages battery charge and discharge per tariffs and load

Protective Earthing

Inverter chassis and battery enclosure bonded to main earth terminal

Provides low-impedance fault path to eliminate electric shock hazards

AC Circuit Isolation

Complete lock-out / tag-out isolation before live busbar work

Protects installation personnel from hazardous contact voltages

Communication Cabling

Shielded twisted-pair wiring for RS485 and CAN links

Prevents EMI signal noise and ensures verified baud-rate data sync

CT Clamp Sensing

Clamps oriented with arrows pointing towards household loads

Prevents inverted power readings and incorrect charging decisions

The WeCo Cluster Controller is designed to manage energy flow within residential and commercial off-grid and grid-parallel energy storage systems. It functions as an ESS assistant, dynamically managing battery charge and discharge. This management is based on factors such as grid tariffs and the household's load demands. The system is engineered for global use and is compatible with standard single-phase and three-phase electrical distribution systems.

While the specific operational details of the WeCo Cluster Controller's multi-tower synchronisation and smart balancing capabilities are determined by its internal programming and system architecture, its overall function relies on robust communication and safe electrical integration.

Essential Electrical Safety and Earthing Practices

Proper electrical safety is paramount when installing any energy storage system, including those involving the WeCo Cluster Controller. This involves ensuring all components are correctly earthed and protected.

The inverter chassis ground and the battery metal enclosure must be bonded to the main installation earthing terminal. This creates a safe path for fault currents, protecting users from electric shock. All DC conductors, AC feeders, and auxiliary control cables must be installed in compliance with applicable national electrical codes. An accredited electrical engineer must verify these installations.

Before working on any live busbars, ensure complete AC circuit isolation and lock-out. This prevents accidental energisation and protects installers from severe electrical hazards.

Communication Protocols: RS485 and CAN

The WeCo Cluster Controller, like many advanced energy management systems, relies on communication protocols such as RS485 and CAN (Controller Area Network) for interfacing with inverters and other system components. These protocols enable the exchange of data necessary for synchronisation, balancing, and overall system control.

For RS485 communication to be reliable, you must maintain shielded twisted-pair cabling. This type of cable helps to reduce electrical noise and interference, ensuring data integrity. Additionally, it is critical to verify proper RS485 communication baud rate settings between all connected devices. Mismatched baud rates will prevent communication.

The specific implementation of CAN bus communication for multi-tower synchronisation and smart balancing will be detailed in the product's technical documentation. However, the principle remains the same: accurate data exchange is vital for coordinated operation.

Correct Installation of Current Transformer (CT) Clamps

Current Transformer (CT) clamps are essential components for monitoring power flow within an energy storage system. They measure the current passing through a conductor without direct electrical contact. Correct installation is critical for the WeCo Cluster Controller's ESS assistant to accurately manage energy.

You must install Current Transformer clamps with their arrows pointing towards the household loads, away from the grid incomer. If CT clamps are installed incorrectly, with the arrows pointing the wrong way, the system will misinterpret power flow. Negative power flow during high household consumption indicates inverted CT clamp installation, meaning the system is reading export when it should be reading import, or vice-versa. This can lead to incorrect battery charging/discharging decisions.

What you can check yourself, and what you cannot

As a homeowner, you can visually inspect cabling for obvious damage and ensure that communication cables are securely connected. You can also typically check the system's display or app for communication errors or incorrect power readings, which might indicate an issue with CT clamp installation or communication settings.

However, any work involving electrical wiring, earthing, or internal component adjustments must be performed by an accredited installer or qualified electrician. This includes:

  • Installing or re-installing CT clamps.
  • Verifying or changing RS485 baud rate settings.
  • Bonding the inverter chassis ground or battery enclosure to the main earthing terminal.
  • Performing pre-commissioning checks, insulation resistance testing, or polarity verification.
  • Any work requiring AC circuit isolation and lock-out.

Opening the unit to replace a fan, clean heatsink fins, or re-pin a connector requires isolating PV, battery, and AC breakers, and waiting the manual's capacitor-discharge time. This is authorised-service work and should not be attempted by homeowners.

What the published sources do not tell you

The provided information focuses on general safety, installation principles, and regulatory compliance rather than specific technical parameters of the WeCo Cluster Controller. Therefore, published guidance does not contain:

  • Specific fault codes or their meanings for the WeCo Cluster Controller.
  • Detailed network rules or communication protocols unique to the WeCo Cluster Controller's multi-tower synchronisation.
  • Specific voltage, current, or power thresholds for battery management or inverter operation.
  • Program names or configuration settings for the ESS assistant or multi-tower control.
  • Detailed wiring diagrams or pinouts for RS485/CAN communication ports on the WeCo Cluster Controller or compatible inverters.
  • Specific instructions for smart balancing algorithms or how they are configured.
  • The manufacturer's recommended maintenance schedule or specific diagnostic procedures for the WeCo Cluster Controller.

These details would typically be found in the manufacturer's specific installation manual or technical data sheet for the WeCo Cluster Controller.
