Setting Up SMA Sunny Tripower Smart Energy with BYD Battery-Box

The SMA Sunny Tripower Smart Energy (STP 5.0 / 6.0 / 8.0 / 10.0 SE) series of hybrid inverters offers a robust solution for solar energy systems, integrating PV generation with high-voltage battery storage. This guide details the essential steps for setting up these inverters with BYD Battery-Box Premium HVS/HVM battery systems, covering physical connections, communication, and initial commissioning.

Understanding the SMA Sunny Tripower Smart Energy Inverter

The Sunny Tripower Smart Energy inverters are designed for both residential and small commercial solar storage installations worldwide. They feature an integrated 3-phase backup power output, ensuring essential loads remain supplied during grid blackouts. The inverter also includes SMA ShadeFix for optimized solar harvest and complies with international grid connection and anti-islanding safety standards.

High-Voltage DC Battery Connection

The SMA Sunny Tripower Smart Energy connects directly to high-voltage lithium battery systems.

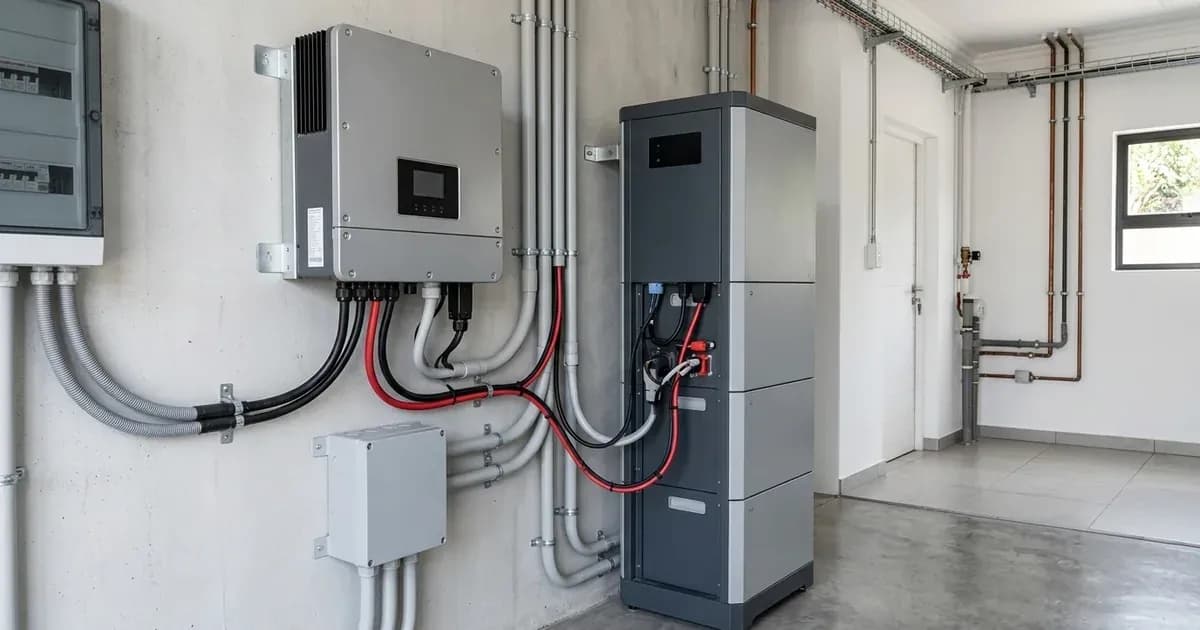

Connecting the BYD Battery-Box Premium HVS/HVM

The Sunny Tripower Smart Energy connects directly to high-voltage lithium battery systems via dedicated DC inputs. Ensure that the BYD Battery-Box Premium HVS/HVM is correctly sized and configured according to BYD's specifications before making any connections.

Dedicated CAN Communication Interface

Effective communication between the inverter and the battery's Battery Management System (BMS) is crucial for safe and efficient operation.

Establishing CAN Communication

Communicate between the SMA hybrid inverter and the battery BMS using shielded twisted-pair cable on RJ45 CAN terminals. This connection enables the inverter to monitor battery status, charge levels, and manage charging/discharging cycles based on the BMS data.

Integrated 3-Phase Backup Power

The Sunny Tripower Smart Energy series provides an integrated solution for backup power.

Backup Power Output

The integrated backup power output provides automatic 3-phase power supply to essential loads during grid blackouts. When connecting backup circuits, ensure dedicated neutral lines for backup loads remain isolated from non-backup loads. This isolation is critical for proper operation and safety during grid outages.

Commissioning with the SMA 360 App

Initial setup and configuration of the inverter and battery system are streamlined using the SMA 360 mobile app.

Wireless Configuration

Commission the inverter, pair battery storage, and configure grid parameters wirelessly via the SMA 360 mobile app. The app allows for easy setup, monitoring, and adjustment of system settings from a mobile device.

Safety Procedures and Earthing

Adhering to safety protocols during installation and maintenance is paramount.

Safe DC Circuit Isolation

WARNING: Always follow proper safety procedures when working with high-voltage DC systems.

To safely isolate the DC circuit, switch off the DC load-break switch and wait at least 5 minutes for internal capacitors to discharge. This waiting period prevents electrical shock from residual energy stored within the inverter.

Protective Earthing and Grounding

For electrical safety, bond the inverter chassis ground and battery metal enclosure to the main installation earthing terminal. Proper earthing protects against electrical faults and ensures compliance with safety standards.

Global Compatibility

The SMA Sunny Tripower Smart Energy inverters are designed for broad application. They are compatible with international standard 3-phase and single-phase electrical distribution networks globally and comply with international grid connection and anti-islanding safety standards.
