SMA Sunny Boy Storage SBS Battery Inverter Setup Guide

Key Takeaways

• Always ensure complete AC circuit isolation and lock-out before working with live busbars.
• Correctly orient Current Transformer (CT) clamps with arrows pointing towards loads.
• Bond the inverter chassis and battery enclosure to the main earthing terminal.
• Verify external backup transfer switch approval with your local grid operator.

Setting Up Your SMA Sunny Boy Storage SBS 3.7-6.0 Inverter

The SMA Sunny Boy Storage (SBS) 3.7, 5.0, and 6.0 models are high-voltage AC-coupled battery inverters designed for residential and commercial energy storage systems. Proper setup is crucial for safe and efficient operation, especially when integrating with multi-battery management systems and the Secure Power Supply (SPS) socket. This guide outlines key installation and configuration steps.

Understanding the AC-Coupled System

An AC-coupled battery inverter, such as the SMA Sunny Boy Storage, integrates with an existing solar PV system by connecting to the AC side of your electrical installation. This allows it to charge batteries from excess solar generation and discharge them to power your home or export to the grid. The inverter manages battery charge and discharge dynamically, often considering grid tariffs and household loads. It also provides a Secure Power Supply (SPS) socket, offering backup power during grid outages.

Critical Installation and Safety Steps

Correct installation of your SMA Sunny Boy Storage inverter involves several key steps, focusing on electrical safety and proper component integration.

What you can check yourself, and what you cannot

As a homeowner, you can perform visual checks and basic troubleshooting, but most electrical work on an inverter system requires an accredited installer.

What you can check yourself:

• CT Clamp Orientation: If your system shows negative power flow during high household consumption, this indicates an inverted CT clamp installation. You can visually inspect the arrows on your CT clamps to ensure they point towards your household loads and away from the grid incomer.
• System Status Indicators: Observe any lights or display messages on your inverter for error codes or operational status. Refer to your inverter's user manual for the meaning of these indicators.

What you cannot check or change yourself:

• AC Circuit Isolation and Lock-out: This is a critical safety procedure that must be performed by a qualified electrician. Never attempt to work on live busbars or AC circuits yourself.
• Earthing Connections: While you can visually confirm connections, the integrity and compliance of earthing must be verified by an accredited installer.

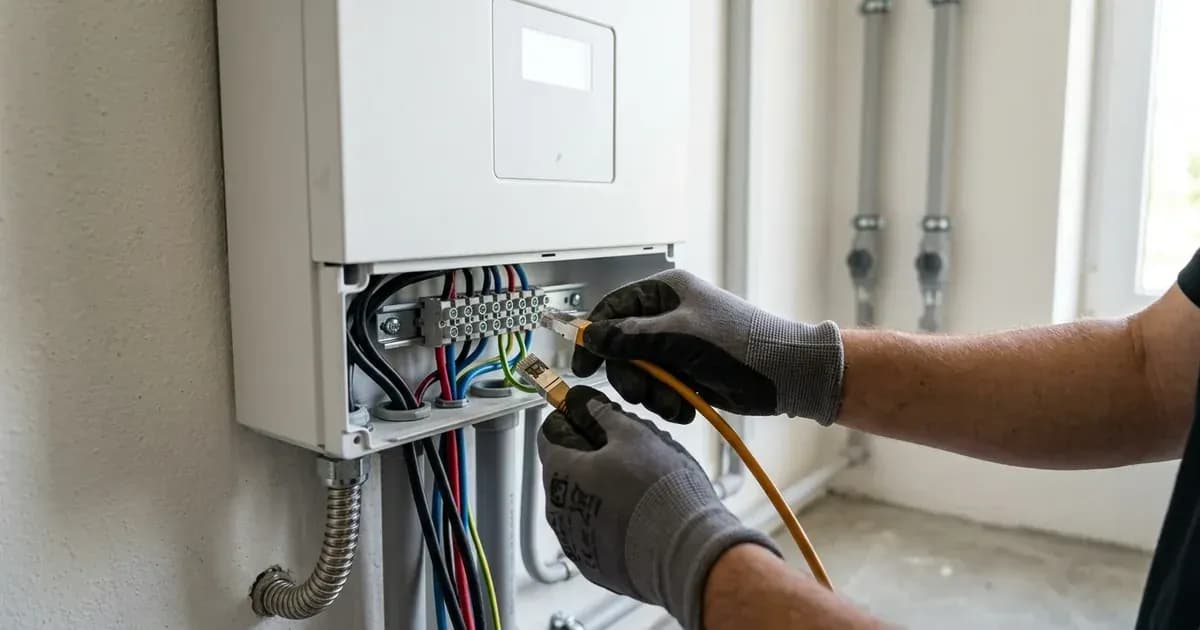

• RS485 Settings: Adjusting communication baud rates or re-pinning connectors requires technical expertise and should only be done by an accredited installer.
• External Backup Transfer Switch Approval: You must verify whether the external backup transfer switch is approved by the local grid operator. This is an administrative check, but any modifications or installations related to the switch itself must be done by a certified professional.
• Opening the Inverter Enclosure: Opening the inverter enclosure or replacing internal components like fans is authorised-service work. Always isolate PV, battery, and AC breakers, and wait the manual's capacitor-discharge time before any such work.

What the published sources do not tell you

While official documentation provides crucial installation and safety directives, it does not detail specific numerical settings for multi-battery management, nor does it provide a comprehensive list of compatible high-voltage batteries. The precise configuration for managing multiple high-voltage batteries will depend on the specific battery models used and their communication protocols with the SMA inverter. Similarly, while the inverter is designed for global electrical network support, specific grid connection requirements and external backup transfer switch approvals will vary by local grid operator in Great Britain. These details are typically found in the inverter's full installation manual or through direct consultation with SMA support or your accredited installer.
