Sol Ark 15K 2P All In One Hybrid Inverter Setup Guide

Key Takeaways

• The Sol-Ark 15K-2P is a 120V/240V split-phase hybrid inverter with integrated grid pass-through.
• Installation requires strict adherence to electrical safety and regulatory standards, including specific disconnect and grounding requirements.
• Financial incentives detailed in the provided documentation are specific to the United States and do not apply to Great Britain.
• Operating the system without written Permission to Operate from the utility is strictly prohibited.

Understanding the Sol-Ark 15K-2P Hybrid Inverter

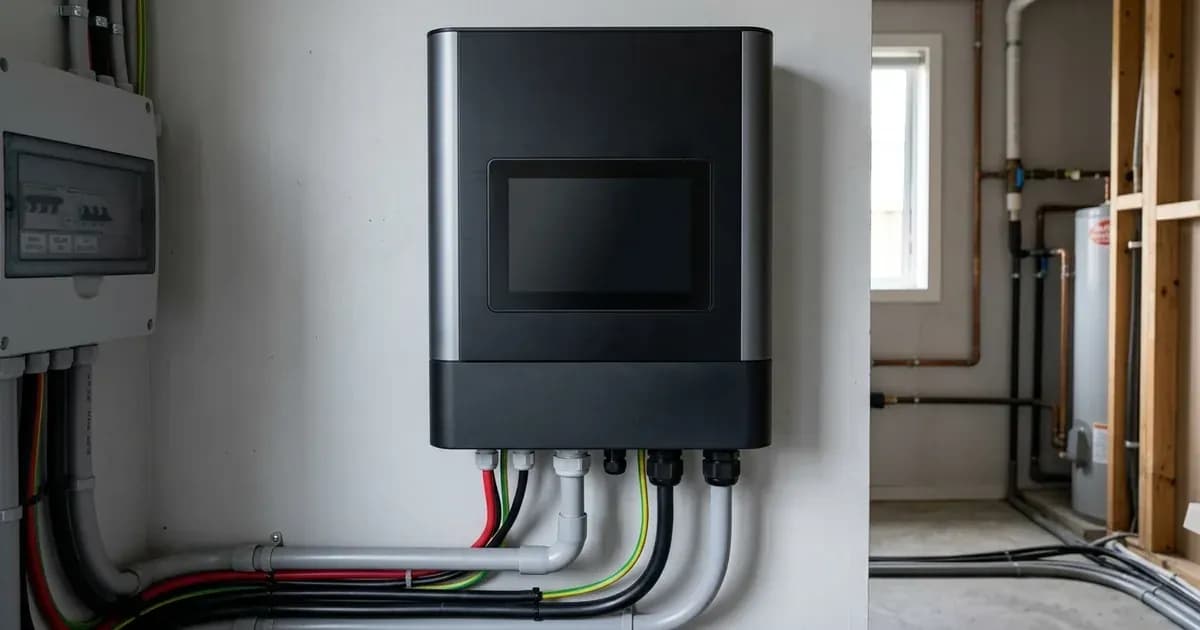

The Sol-Ark 15K-2P is an all-in-one hybrid inverter designed for residential solar installations. It operates on a 120V/240V split-phase architecture and includes an integrated 200A grid pass-through. This inverter is manufactured by Sol-Ark / Portable Solar LLC.

Key Technical Features and Architecture

The Sol-Ark 15K-2P is engineered to manage solar power generation, battery storage, and grid interaction within a single unit. It features three independent MPPT channels, allowing for flexible solar array configurations and optimised power harvesting from different orientations or shading conditions. The inverter also includes an integrated DC Arc-Fault Circuit Interrupter for enhanced safety.

The inverter's design incorporates several features aimed at system resilience and control:

• Whole-Home Grid Pass-Through: This allows the inverter to manage the flow of power for the entire home, integrating solar, battery, and grid sources.
• Ultra-Fast UPS Backup Transfer: In the event of a grid outage, the inverter is designed to quickly switch to battery backup, providing uninterrupted power to critical loads.
• Generator Autostart and Load Shedding: These functions enable the system to automatically manage power from a generator and prioritise loads during periods of limited power availability.
• PowerView Mobile App and Wi-Fi Dongle: For remote monitoring and control of the system.

Regulatory Compliance and Safety Requirements

Proper installation and operation of the Sol-Ark 15K-2P require strict adherence to electrical safety standards and utility regulations. While the provided official documentation references US-specific standards, the principles of safe electrical practice are universal.

Grid Interaction and Anti-Islanding

Grid-tied solar inverters, including the Sol-Ark 15K-2P, must comply with UL 1741-SB and IEEE 1547-2018 anti-islanding parameters. These standards mandate that the inverter automatically disconnects from the grid if the utility power goes out. This prevents the inverter from feeding power into a de-energised grid, which could pose a severe hazard to utility workers.

Permission to Operate (PTO)

Operating the generating facility prior to receiving written Permission to Operate is strictly prohibited. This is a crucial regulatory step that ensures the system has been inspected, meets all local and national electrical codes, and is approved by the utility for connection to the grid.

Financial Incentives and Tax Credits (US Context)

The provided official documentation details financial incentives and tax credits that are applicable in the United States. These include:

• Federal Income Tax Credit: Qualified residential clean energy expenditures are eligible for a 30% federal income tax credit.
• Energy Storage Qualification: Qualified energy storage property with a capacity of 3 kilowatt-hours or greater qualifies for federal credits.
• Section 25D Credit: Residential solar installations claim a 30% credit against total federal tax liability under Section 25D. Expenditures for solar and residential storage qualify for a 30% credit under Section 25D of the IRC.

Important Note for Great Britain: These financial incentives are specific to the United States and are not applicable in Great Britain. Readers in Great Britain should consult local government schemes, energy suppliers, and certified installers for information on available incentives, grants, or tariffs (such as the Smart Export Guarantee) in their region. Ofgem's website provides a list of licensed Smart Export Guarantee (SEG) providers, who determine their own rates and terms.

What you can check yourself, and what you cannot

As a homeowner, you can monitor the Sol-Ark 15K-2P's performance via the PowerView Mobile App and Wi-Fi Dongle. You can also visually inspect the inverter and surrounding area for any obvious damage or obstructions.

However, any work involving the internal components, electrical wiring, or grid connections of the Sol-Ark 15K-2P must be performed by an accredited installer. This includes:

• Installation of the inverter and its associated wiring.
• Sizing and installation of overcurrent protection devices.
• Bonding of equipment grounding conductors.
• Configuration of grid-protection settings, which are set by an accredited installer and changing them can breach the connection agreement.
• Any repairs or modifications to the inverter's internal components.

Opening the inverter enclosure, replacing components like fans, or re-pinning connectors should only be done by authorised service personnel. Before any such work, it is mandatory to isolate all power sources (PV, battery, and AC breakers) and wait the manual's specified capacitor-discharge time to ensure safety. A spanner across a battery bank can short hundreds of amps, causing severe injury or fire.

What the published sources do not tell you

The provided official documentation is specific to the Sol-Ark 15K-2P's technical specifications and US regulatory compliance. It does not contain:

• Specific installation instructions or wiring diagrams for the Sol-Ark 15K-2P.
• Detailed information on battery compatibility or specific battery charging parameters.
• UK-specific electrical codes, network rules, or utility connection requirements for Great Britain.
• Information on UK-specific financial incentives, grants, or export tariffs (e.g., Smart Export Guarantee rates).
• Any fault codes or troubleshooting steps for the Sol-Ark 15K-2P.
• Specific maintenance schedules or procedures for the inverter.
• The exact continuous solar-to-grid power rating, low-voltage battery flexibility details, or parallel stacking capability metrics.
