Victron Orion-Tr Smart DC-DC Charger and Dual Battery Setup Guide
Updated 7 September 2026 · By SolarNevs Research Desk, Dealer surveys + verified sources · 1 source · Method ↗
Key Takeaways
- Correct cable selection, wiring, and terminal torque are critical to prevent overheating and potential fire hazards. Always isolate battery power and use insulated tools when working on terminals to prevent short circuits.
- The Victron Orion-Tr Smart DC-DC Charger is not protected against reverse battery polarity, and damage from such an event is not covered under warranty.
- Engine shutdown detection settings are configurable via the VictronConnect App, allowing customisation for both smart and regular alternators.
- Many operational issues, such as the charger not powering up or the battery not charging, can be resolved by checking wiring, battery supply, or VictronConnect settings.
Setting Up Your Victron Orion-Tr Smart DC-DC Charger for Dual Battery Systems
The Victron Orion-Tr Smart DC-DC Charger Isolated is designed to efficiently charge a secondary service battery from a starter battery or vehicle alternator. This guide focuses on the installation and configuration of the Orion-Tr Smart DC-DC Charger, including its engine shutdown detection features, lithium charge profiles, and setup using the VictronConnect App. The isolated design ensures electrical separation between the input and output, which is crucial for certain vehicle electrical systems.
Understanding Engine Shutdown Detection and Alternator Types
The Orion-Tr Smart DC-DC Charger incorporates an engine shutdown detection mechanism to prevent the starter battery from being depleted when the vehicle engine is off. This system relies on monitoring the input voltage from the starter battery or alternator.
The charger's engine shutdown detection is enabled by default when the charger mode is selected. If this feature is disabled by the user or if power supply mode is chosen, the engine is considered to be running, and no shutdown detection will occur.
The VictronConnect App allows selection of the alternator type: "Smart Alternator", "Regular Alternator", or "User defined". The default setting is "Smart Alternator". Choosing "Smart Alternator" or "Regular Alternator" applies specific default voltage thresholds for starting and stopping the charge cycle. If these default settings are modified, the alternator type automatically switches to "User defined".
Key voltage parameters for engine shutdown detection (for 12V input models):
Setting Name | Default Value (12V Input) | Description |
|---|---|---|
Start voltage (V start ) | 14V | Charging begins immediately when the input voltage reaches this level. |
Delayed start voltage (V start(delay) ) | 13.3V (Smart Alternator), 13.8V (Regular Alternator) | A lower start level for smart alternators, where the auxiliary battery's charging is delayed. |
Delayed start voltage delay (t start delay ) | 2 minutes | The time allowed for the starter battery to recharge during the delayed start level. |
Shutdown voltage (V shutdown ) | 13.1V (Smart Alternator), 13.5V (Regular Alternator) | This level corresponds to the engine being off. Charging stops after 1 minute if the voltage remains below this threshold, providing hysteresis. |
For 12V input models (12|12; 12|24; 12|48), the range for engine start/shutdown levels is 8 to 17V. For 24V input models (24|12; 24|24; 24|48), the range is 16 to 35V. For 48V input models (48|12; 48|24; 48|48), the range is 32 to 68V.
An Input voltage lock-out also protects the starter battery. In charger mode, the default lock-out is 12.5V, with a restart at 12.8V. This means charging stops immediately if the input voltage drops below 12.5V. In power supply mode, the default lock-out is 10.5V, with a restart at 12V.
Configuration with VictronConnect App
The VictronConnect App is essential for setting up and monitoring the Orion-Tr Smart DC-DC Charger. The charger uses Bluetooth for connection to the VictronConnect app.
To configure the device:
- Open the VictronConnect App to set up the product.
- The factory default setting will work with most regular and smart alternators but can be re-configured with the VictronConnect App.
- In the app, you can enable or disable engine shutdown detection.
- Select the appropriate "Alternator type" ("Smart Alternator", "Regular Alternator", or "User defined") and adjust the
Start voltage,Delayed start voltage,Delayed start voltage delay, andShutdown voltageas needed. - Ensure
Charger modeis enabled in the settings for battery charging. IfPower supply modeis selected, the output voltage might be too low for proper charging as it does not follow a charging algorithm.
For installation in charger mode:
- Disconnect the remote on/off.
- Connect the input supply.
- Set up via VictronConnect.
- Connect the battery to be charged.
- Reconnect the remote on/off.
Remote On/Off Control and Override
The Orion-Tr Smart DC-DC Charger features remote on/off terminals (L-H pins) for external control. This allows for integration with other systems, such as a Battery Management System (BMS) or a manual switch.
Several wiring options are available for the remote on/off function:
- Switch between L-H pins: An on-level impedance of less than 500kΩ between the L-H pins will activate the charger.
- Switch between (input/starter) battery plus and H-pin: An on level of greater than 3V at the H-pin will activate the charger.
- Switch between L-pin and (input/starter) ground: An on level of less than 5V at the L-pin will activate the charger.
- Isolated remote on/off cable: This can be used for control by a small BMS or similar isolated control system.
An engine shutdown detection override is available by applying greater than 7V to the remote L-pin. This forces the charger to allow charging independently of the engine shutdown detection, which can be useful in specific scenarios but should be used with caution to avoid depleting the starter battery.
Troubleshooting Common Issues
The Victron Orion-Tr Smart DC-DC Charger provides various error codes and fault indications to assist with troubleshooting.
Code / Symptom | Meaning / Cause | Fix Direction |
|---|---|---|
Error 2 | Battery voltage too high | This error will auto-reset after the battery voltage has dropped. It can be caused by other charging equipment or a fault in the charge controller. |
Error 26 | Terminal overheated | Power terminals overheated. Check wiring, including wire type and strands, and/or fasten bolts if possible. This error will auto-reset. |
Error 27 | Charger short circuit | Over-current condition on the battery side, possibly due to a battery attached via a contactor or an inverter with large input capacitance. This error will auto-reset. If not, disconnect from all power sources, wait 3 minutes, and power up again. If it persists, the unit may be faulty. |
Error 116 | Calibration data lost | If this is an active error and the unit does not work, the unit is faulty; contact your dealer for replacement. If only in history and the unit operates normally, it can be ignored. |
Error 119 | Settings data lost | The charger cannot read its configuration and has stopped. This error will not auto-reset. To resolve, restore to factory defaults via VictronConnect, disconnect all power for 3 minutes, power up, and reconfigure. Report this to your Victron dealer. |
Charger does not power up | Mechanical damage, burn marks, no battery supply, reverse polarity, remote link not connected | Check for physical damage. Restore battery supply by checking external fuses, loose wires, damaged cables, or bad crimps. Ensure the remote link (wire loop between L- and H-pins) is connected. Damage from accidental reverse battery polarity is not covered under warranty. |
Battery does not charge | Remote input inactive, disabled in settings, input voltage lock-out, engine shutdown detected, incorrect cables | Consult remote on/off wiring. Enable the charger in battery settings. Ensure input voltage is above the restart value or disable input voltage lock-out. Check engine shutdown detection settings. Verify correct cable type, stripping, and torque. |
Battery does not get fully charged | Incorrect battery settings (absorption voltage too low, charger mode disabled), input voltage lock-out enabled with input voltage below lock-out | Check absorption voltage in battery settings against manufacturer recommendations. Ensure |
Bluetooth LED Off | No input voltage, Bluetooth disabled in VictronConnect, 'Enabled for 30 seconds' selected, faulty unit | Restore battery supply. If Bluetooth was disabled permanently in VictronConnect, it cannot be undone. If 'Enabled for 30 seconds' was selected, repower the unit and connect within 30 seconds. If none apply, the unit may be faulty. |
Bluetooth LED Blinking (every 0.8 seconds) | A Bluetooth connection may already be active | Only one phone or tablet can connect at a time. If the Orion is greyed out in VictronConnect, another device may be connected. |
Installation Safety and Switchgear Requirements
Proper installation and adherence to safety guidelines are paramount for the safe and reliable operation of the Victron Orion-Tr Smart DC-DC Charger.

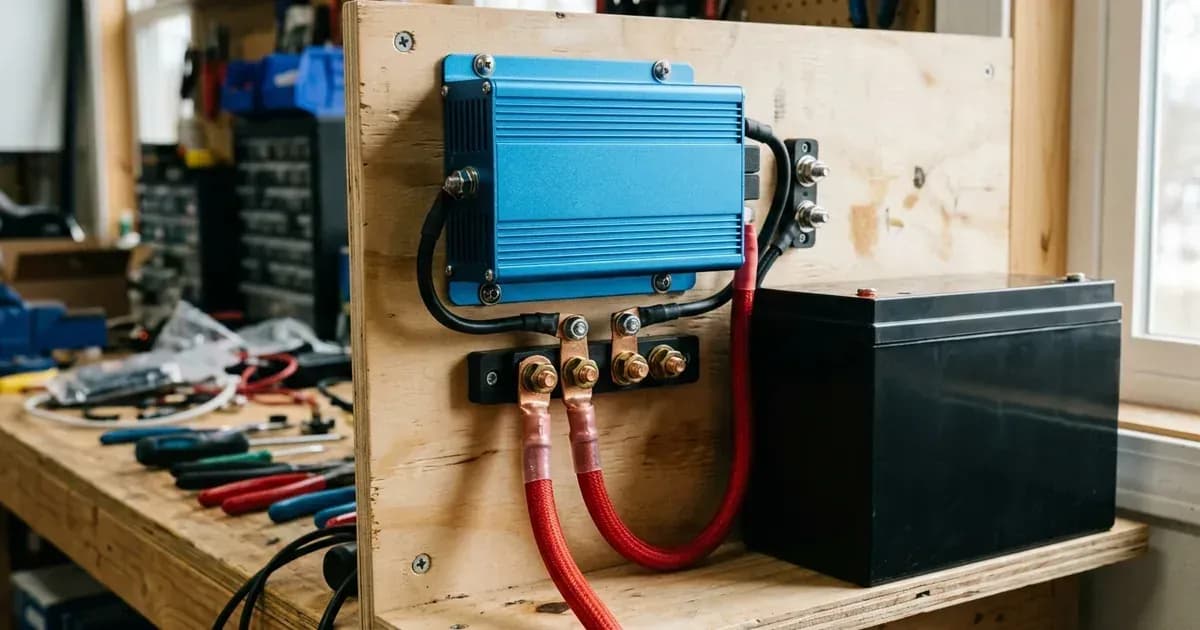

Mounting: Mount the unit vertically on a non-flammable surface, with the power terminals facing downwards. Observe a minimum clearance of 10 cm under and above the product for optimal cooling. Mount the charger close to the battery, but never directly above the battery to prevent damage due to gassing of the battery.
Cabling: Use flexible multi-stranded copper cables for the battery connections. The diameter of the individual strand of the cable used should not exceed 0.4mm (0.016 inch) or have a surface area exceeding 0.125mm² (AWG26). The maximum operating temperature for the cable should be 90°C (194°F). For example, a 16mm² cable should have at least 122 strands (class 5 or higher stranding according to VDE 0295, IEC 60228 and BS6360). Thicker strands can lead to a small contact area and high contact resistance, causing severe overheating and potentially resulting in fire.
Polarity Protection: The Orion Smart DC-DC Charger is not protected against reverse battery polarity. Any damage caused by reverse polarity is not covered under warranty, and a device damaged in this manner cannot be repaired. Always verify the battery polarity before connecting or reconnecting the battery cables to the Orion smart charger. Connect the battery cables to the Orion first, verify battery polarity again, and only then connect the battery.
Terminal Torque: Tighten the terminal screws with the correct torque of 1.6 Nm. Hold the recommended torque for at least 5 seconds; this allows the screw time to settle to the set torque. Never apply less than the recommended torque.
Forced Charging Warning: When the engine shutdown detection has been switched off in VictronConnect ('forced charging'), current will be drawn from the starter battery even if the engine is not running. This can potentially deplete the starter battery. During 'forced charging', the input voltage lock-out is the only limit left to disable charging automatically. Ensure this level is not set too low; in most applications, 12.5V is sufficiently low.
What the published sources do not tell you
The provided documentation offers comprehensive guidance for the Victron Orion-Tr Smart DC-DC Charger. However, it does not include a full list of specific model numbers (e.g., 12/12-18A, 12/12-30A, 24/12-20A) with their complete electrical specifications such as input voltage range, output current, and efficiency. Only an example model, "A 12|12-30A Smart Charger will draw about 35A from the input when running at full capacity," is mentioned in the context of input current draw.
Additionally, while the table of contents lists sections for "LED Indicators," "VictronConnect Live Data Information" (including Instant Readout over BLE, Charger Mode - STATUS tab, GRAPH tab, Power Supply Mode), "VictronConnect Charger Mode - Battery Settings," and "VictronConnect Product Information," the detailed content for these sections was not available in the provided documents. This means specific LED patterns, detailed live data displays, comprehensive battery setting options within the app, and full product information accessible via VictronConnect are not explicitly detailed.
Frequently asked questions
How do I set up engine shutdown detection on the Victron Orion-Tr Smart DC-DC Charger?
Engine shutdown detection is enabled by default in charger mode and configurable via the VictronConnect App. You can select between 'Smart Alternator' or 'Regular Alternator' types, which apply default voltage settings, or use 'User defined' for custom thresholds. The charger detects the engine running based on input voltage levels like Start voltage and Shutdown voltage.
What are common error codes for the Orion-Tr Smart DC-DC Charger and how are they resolved?
Common errors include Error 2 (Battery voltage too high), Error 26 (Terminal overheated), and Error 27 (Charger short circuit). Error 2 auto-resets when voltage drops. Error 26 requires checking wiring and terminal tightness. Error 27 indicates an over-current condition on the battery side, often auto-resetting, but may require power cycling or unit replacement if persistent.
What are the critical safety precautions for installing a Victron Orion-Tr Smart DC-DC Charger?
Mount the unit vertically on a non-flammable surface with power terminals downwards, ensuring 10 cm clearance for cooling. Always disconnect batteries and isolate power sources before terminal wiring. Use flexible multi-stranded copper cables with individual strands not exceeding 0.4mm (0.016 inch). The charger is not protected against reverse battery polarity; always verify polarity before connecting cables. Tighten terminal screws to 1.6 Nm for 5 seconds.
How can I control the Orion-Tr Smart DC-DC Charger remotely?
The device features remote on/off terminals (L-H pins). You can wire a switch between the L-H pins, between the input battery plus and the H-pin, or between the L-pin and input ground. An isolated remote on/off cable can also be used, for example, controlled by a Battery Management System (BMS).
Why is my secondary battery not fully charging with the Orion-Tr Smart DC-DC Charger?
This can occur if battery settings, such as absorption voltage, are incorrect or if charger mode is disabled in VictronConnect. Ensure the absorption voltage matches the battery manufacturer's recommendations. If 'Input voltage lock-out' is enabled and the input voltage is below the lock-out value, charging will also be disabled.
