Deye Hybrid Inverter Parallel 3-Phase Setup Guide

Key Takeaways

• Deye SUN series single-phase hybrid inverters can be paralleled, with support for up to 16 units in a single system.
• Three single-phase Deye inverters can be configured to create a 3-phase microgrid, requiring precise phase rotation matching.
• The master inverter must be set to DIP address 01, with slaves addressed sequentially from 02 to 16.
• All electrical connections, especially phase rotation and neutral bonding, require a registered electrician to ensure safety and compliance.

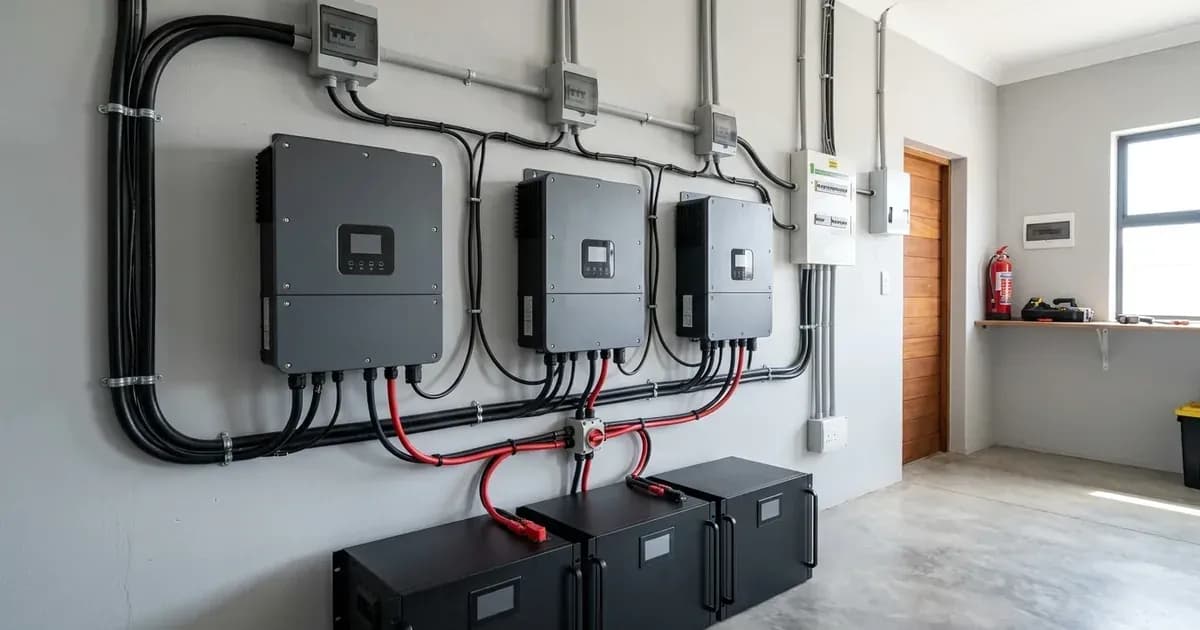

Setting up Deye Hybrid Inverters for Parallel 3-Phase Operation

In South Africa, load-shedding often drives the need for robust backup power. Deye SUN series hybrid inverters offer flexibility by allowing you to combine multiple single-phase units to create a larger, more resilient system, including a 3-phase supply. This guide explains the technical steps and critical considerations for configuring Deye hybrid inverters in parallel for 3-phase operation.

This process involves specific communication wiring, DIP switch settings, and careful electrical connections to ensure safe and stable operation. All work involving AC wiring, battery connections, and grid-tie configurations must be performed by a registered electrician to comply with local regulations and ensure safety.

How Deye Parallel Systems Work

Deye hybrid inverters use a CAN (Controller Area Network) or RS485 parallel communication bus to coordinate their operation. This allows multiple inverters to act as a single, larger system, sharing the load and managing power flow. For 3-phase operation, three single-phase inverters are assigned to Phase A, Phase B, and Phase C respectively, creating a balanced 3-phase microgrid.

The system relies on a master-slave architecture. One inverter is designated as the master, responsible for overall system control, including Battery Management System (BMS) communication if a shared battery bank is used, and external grid monitoring via CT clamps. The other inverters act as slaves, following the master's commands to distribute power efficiently. The inverters also utilise "autonomous frequency droop power sharing to balance load distribution across parallel units without communication delay." This ensures stable operation even under dynamic load conditions.

Step-by-Step Configuration for Parallel Deye Inverters

Configuring Deye SUN series hybrid inverters for parallel 3-phase operation requires attention to detail across several key areas.

1. Communication Wiring

"Direct pin-to-pin RJ45 communication cables must connect the Parallel-1 and Parallel-2 CAN ports in a daisy-chain bus." This establishes the communication link between all inverters in the parallel system. Ensure that the cables are correctly terminated and securely connected to avoid communication errors.

2. DIP Switch Addressing

Each inverter in a parallel system must have a unique address. "The master inverter must be set with DIP address 01, while consecutive slave inverters are addressed sequentially from 02 to 16." This addressing scheme allows the inverters to identify each other and communicate effectively within the master-slave hierarchy. Consult your inverter's manual for the exact location and setting procedure for the DIP switches.

3. Battery Configuration

You have two primary options for battery configuration in a parallel Deye system:

• Shared Battery Bank: "Parallel Deye inverters can share a common 48V low-voltage lithium battery bank, with the Master inverter managing BMS communication." This simplifies battery management as only the master inverter needs to communicate with the battery's BMS. Ensure the battery bank is appropriately sized for the combined capacity of all inverters.
• Independent Battery Banks: "Alternatively, each parallel inverter can connect to its own independent battery bank by disabling the shared battery mode in system settings." This option provides redundancy, as a fault in one battery bank will not affect the others. However, it requires individual battery management for each inverter.

4. CT Metering

For accurate grid monitoring and energy management, "External CT clamps or an Eastron 3-phase energy meter must be connected exclusively to the Master inverter for overall grid monitoring." Connecting CT clamps to multiple inverters in a parallel system can lead to incorrect readings and system instability.

5. AC Phase Rotation

When forming a 3-phase microgrid with three single-phase inverters, "Phase rotation (L1, L2, L3) must be strictly matched between grid inputs and backup load outputs to avoid destructive phase collision." Incorrect phase rotation can cause severe damage to the inverters and connected loads. A registered electrician must verify and ensure correct phase sequencing.

6. Common Neutral Bonding

"The neutral conductor must be solid and continuous across all parallel units; separate neutral switching is prohibited." Proper neutral bonding is critical for safety and system stability in any multi-inverter or 3-phase installation. An improperly bonded neutral can lead to dangerous voltage imbalances and equipment failure.

7. Auxiliary Port Configuration

While not directly part of the parallel setup, the "AUX port can be configured for generator automatic start, micro-inverter AC coupling, or smart load diversion." This port offers additional functionality to integrate other components into your solar energy system.

Safety Considerations and Professional Installation

Working with high-voltage AC and DC systems, especially in a parallel or 3-phase configuration, carries significant risks. "The neutral conductor must be solid and continuous across all parallel units; separate neutral switching is prohibited." Incorrect wiring, especially regarding phase rotation and neutral bonding, can lead to equipment damage, electrical fires, or severe injury.

Any installation, modification, or maintenance of a Deye parallel inverter system, particularly those involving grid connections or 3-phase wiring, must be carried out by a registered electrician. This professional will ensure that all connections comply with the manufacturer's specifications and South African electrical safety standards, and will issue a Certificate of Compliance (CoC) for the installation. Never attempt to work on live electrical circuits. Always isolate PV, battery, and AC breakers, and wait for the manufacturer's specified capacitor discharge time before opening any unit. Opening the unit is authorised-service work.

What the Published Sources Do Not Tell You

While the Deye documentation provides comprehensive guidance for paralleling, it is important to note a specific limitation regarding inverter series compatibility. "Deye low-voltage (48V) and high-voltage (HV) series utilize different parallel communication protocols and cannot be paralleled together in a single system." This means you cannot mix 48V (low-voltage) Deye inverters with their high-voltage counterparts in the same parallel array, even if they are from the same general product line. Always ensure all inverters in your parallel setup are of the same voltage series (e.g., all 48V).

The documentation also highlights the "rapid transfer time of less than 4 milliseconds (UPS level) during grid outages when operating in parallel mode," which is a key benefit for sensitive loads, but does not detail specific fault codes or troubleshooting steps for communication errors in parallel systems. If you encounter issues, the first step is to verify all RJ45 cable connections and DIP switch settings. If problems persist, consult a qualified Deye installer or technical support.
