Deye Smart Load Port and Generator Integration Guide

Key Takeaways

• The Deye inverter's Aux port is highly versatile, supporting smart load, generator, and microinverter functions.
• Automated load shedding uses battery State of Charge (SOC) to manage non-essential appliances.
• Generator integration uses a dry contact for automatic start and stop, providing seamless backup power.
• Safe installation of Current Transformer (CT) clamps requires complete AC circuit isolation and lock-out.

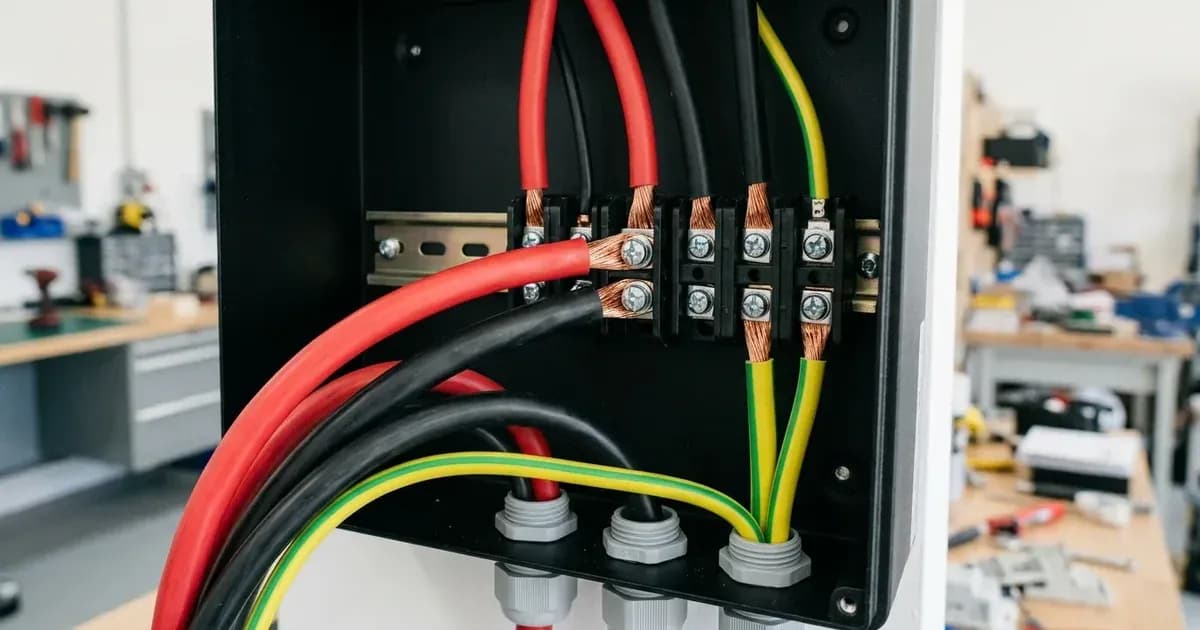

Understanding the Deye Multifunctional Auxiliary Port

The Deye inverter features a highly versatile Multifunctional Auxiliary (Aux) port, designed to integrate various components into your energy system. This port can be configured to serve multiple roles, including a Smart Load output, a generator input, or an AC-coupled microinverter input, depending on your specific requirements. This flexibility allows for advanced energy management and system optimisation.

The Deye inverter is engineered for both residential and commercial off-grid and grid-parallel energy storage systems worldwide. It is compatible with standard single-phase and three-phase electrical distribution systems globally.

How Deye Inverters Manage Smart Loads

Smart Load shedding is a key feature that allows your Deye inverter to manage non-essential loads automatically. This function ensures that appliances like water heaters or heat pumps are only powered when your battery's State of Charge (SOC) exceeds predefined thresholds. This mechanism helps to maintain a sufficient battery reserve for critical backup loads, improving the resilience and efficiency of your energy system.

The ESS assistant dynamically manages battery charge and discharge based on grid tariffs and load, further optimising energy use. When configuring Deye Smart Load, it is important to set the Off-Grid Battery SOC threshold to ensure that a sufficient battery reserve is maintained for critical backup loads.

Integrating a Diesel Generator for Automated Backup

For systems requiring robust backup power, the Deye inverter offers seamless integration with diesel generators. The inverter includes a dry contact output that triggers automatic remote start and stop signals for backup diesel generators. This means your generator can automatically kick in when battery levels are low or grid power is unavailable, and then shut down once normal operation resumes. This provides a reliable and automated backup power solution.

AC-Coupling Microinverters with Frequency Shifting

The Deye Aux port also supports the retrofitting of microinverters, enabling AC coupling. This is particularly useful for expanding existing solar installations or integrating new microinverter-based PV arrays. The system uses automated frequency shifting curtailment to manage the output of the microinverters. When the battery is full and there is excess solar generation, the Deye inverter can increase the grid frequency slightly, causing the microinverters to reduce their output, thereby preventing overcharging or unwanted export.

The Deye inverter complies with international microgeneration safety and grid protection standards, ensuring certified anti-islanding grid protection.

Implementing Zero-Export with External CT Clamps

To achieve zero-export functionality, where no excess solar power is sent back to the grid, Deye inverters utilise external Current Transformer (CT) clamps. These clamps are installed on the incomer cable, sensing the power flow to and from the grid. The inverter then adjusts its output to match the household's consumption, preventing any export.

When installing Current Transformer clamps, ensure the arrows on the clamps point towards the household loads and away from the grid incomer. This ensures correct measurement of power flow.

What you can check yourself, and what you cannot

Configuring the Deye Aux port for Smart Load, generator control, or microinverter integration involves specific settings within the inverter's menu. While you can review the current settings, any changes to grid-connected systems or those involving high-voltage AC wiring should only be performed by a qualified and accredited installer. This ensures compliance with local electrical regulations and maintains system safety.

Safety protocols are paramount:

• CT Clamp Installation: Ensure complete AC circuit isolation and lock-out before installing CT clamps on live busbars. This is a critical safety measure to prevent electric shock.
• Earthing: The inverter chassis ground and battery metal enclosure must be bonded to the main installation earthing terminal. This protective bonding is essential for electrical safety.

Attempting to modify wiring or settings without proper training and accreditation can lead to dangerous situations, equipment damage, and may void your warranty or connection agreement.

What the published sources do not tell you

While the Deye specifications outline the capabilities of the multifunctional Aux port, they do not detail the exact menu navigation or specific parameter values for each configuration. These details are typically found within the inverter's comprehensive user manual or installer guide, which can vary by specific model and firmware version.

The MCS Certified documentation provides functional rules and configuration standards but does not include step-by-step installation guides or troubleshooting procedures for specific integration scenarios. For instance, while it states the inverter supports generator auto-start, the precise wiring diagram for the dry contact connection to various generator models is not provided. Similarly, specific frequency shifting parameters for microinverter curtailment are not detailed. These specifics often depend on the particular microinverter model and the overall system design.
