Growatt Shinemaster Datalogger And Zero Export Guide

Key Takeaways

• The Growatt ShineMaster manages telemetry and power regulation for up to 32 inverters.
• Zero export is achieved through dynamic closed-loop regulation, configured in FoxCloud to 0 Watts.
• Correct installation of the Eastron SDM630 meter and CT clamps is critical for accurate export control.
• Installing CT clamps requires complete AC circuit isolation and lock-out procedures, which is work for an accredited installer.

How does the Growatt ShineMaster manage zero export?

The Growatt ShineMaster acts as a central datalogger and smart meter hub, specifically designed to manage power regulation and telemetry for multiple solar inverters. It enables dynamic closed-loop zero export regulation by continuously monitoring the grid connection and adjusting inverter output to prevent electricity from being sent back to the grid. This functionality is crucial for installations in Great Britain where export limitation is required by the Distribution Network Operator (grid operator).

Understanding Closed-Loop Zero Export

Closed-loop zero export is a system where the inverter's output is dynamically adjusted in real-time based on the actual power flow at the grid connection point. The ShineMaster achieves this by integrating with an external smart meter, such as the Eastron SDM630, via RS485 Modbus RTU communication.

The smart meter measures the power flowing to or from the grid. This data is sent to the ShineMaster, which then communicates with the connected inverters. If the system detects that power is about to be exported, the ShineMaster instructs the inverters to reduce their output, ensuring that the net export to the grid remains at or below the configured limit, typically 0 Watts. This process is continuous and automatic, responding to changes in household load and solar generation.

Key Configuration Steps for Zero Export

Implementing zero export with the Growatt ShineMaster involves specific hardware connections and software settings. The Eastron SDM630 meter plays a central role in providing the necessary grid power measurements.

Eastron SDM630 Meter Connection

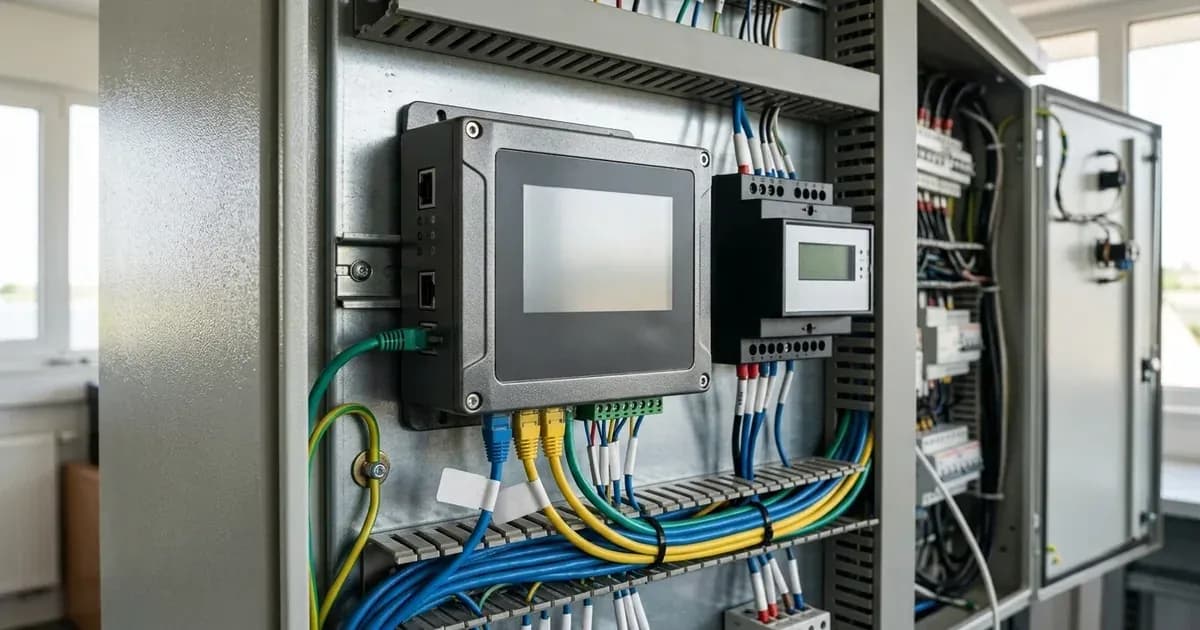

The Eastron SDM630 meter must be connected to the dedicated Meter port on the ShineMaster. This connection uses RS485 differential communication wires, labelled A and B. It is essential to maintain shielded twisted-pair cabling for communication integrity and to verify proper RS485 communication baud rate settings to ensure reliable data transfer.

CT Clamp Installation

Current Transformer (CT) clamps are critical for measuring current flow. Their correct placement and orientation are vital for accurate zero export functionality.

Software Configuration

Once the hardware is correctly installed, the zero export function needs to be enabled in the Growatt FoxCloud settings. This involves configuring "Feed-in Limitation" and setting the maximum allowable export power to 0 Watts. The ShineMaster will then dynamically manage battery charge and discharge based on grid tariffs and load, alongside controlling inverter output to maintain the zero export limit.

What you can check yourself, and what you cannot

As a homeowner, you can perform some basic checks to ensure your Growatt ShineMaster zero export system is functioning as intended, but critical installation steps require professional expertise due to safety risks.

What you can check yourself:

• FoxCloud Settings: You can verify in the Growatt FoxCloud portal that "Feed-in Limitation" is enabled and configured to 0 Watts.
• Visual CT Clamp Orientation: If accessible and safe to view without opening electrical enclosures, you can visually confirm that CT clamp arrows are pointing towards your household loads, away from the grid incomer.
• Communication Status: Check the ShineMaster's interface or FoxCloud for any communication errors with the smart meter or inverters, which might indicate cabling issues.

What you cannot do yourself:

• Installing CT Clamps on Live Busbars: This is a hazardous operation. You must never attempt to install Current Transformer clamps on live busbars. This requires complete AC circuit isolation and lock-out procedures, which must be performed by a qualified and accredited installer. Failure to do so can result in severe injury or death.
• Wiring the Eastron SDM630 Meter: Connecting the RS485 wires to the ShineMaster and the meter involves working with electrical connections that should only be handled by an accredited professional.
• Main Earthing Terminal Protective Bonding: The inverter chassis ground and battery metal enclosure must be bonded to the main installation earthing terminal. This is a critical safety measure that falls under the scope of an accredited installer's work.

The Growatt ShineMaster system complies with international microgeneration safety and grid protection standards, and its proper installation ensures certified anti-islanding grid protection. Any work involving AC circuits, earthing, or opening the inverter's enclosure should be left to an accredited installer to ensure safety and compliance with regulations in Great Britain.

What the published sources do not tell you

While official documentation provides essential technical specifications and installation guidelines for the Growatt ShineMaster and its zero export capabilities, it does not detail specific grid operator (Distribution Network Operator) requirements or local grid connection rules. These can vary significantly across different regions in Great Britain.

official documentation also does not provide specific troubleshooting steps for communication errors between the ShineMaster, the Eastron SDM630 meter, or the inverters beyond verifying baud rate settings and cabling. Detailed error codes or diagnostic procedures are typically found in a full product manual or installer guide, which may not be publicly available or may require a technical login. Furthermore, while it states compatibility with standard single-phase and three-phase electrical distribution systems globally, specific wiring diagrams for every possible installation scenario are not included.
