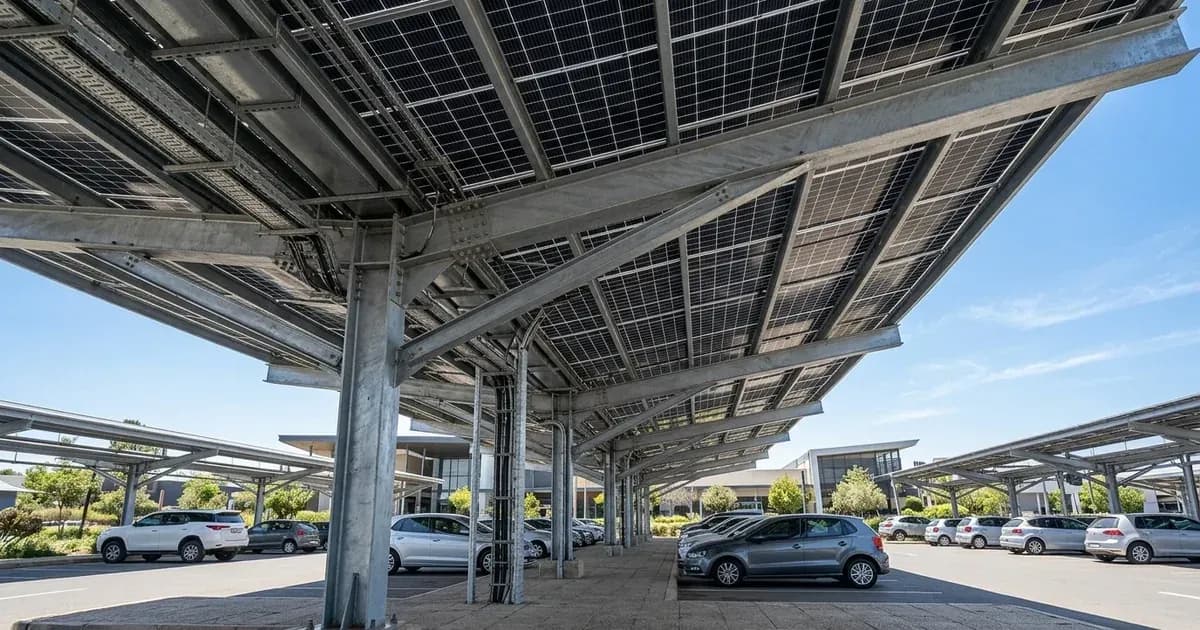

South Africa Shopping Centre Solar Carport Engineering Guide

Key Takeaways

• All grid-tied and hybrid solar PV installations in South Africa require official registration and approval by City Power.
• A registered Master Installation Electrician must issue a SANS 10142-1-2 CoC for the entire hybrid generating installation.
• Inverters used in embedded generation must be certified to NRS 097-2-1 and listed on an approved equipment register.
• Zero-export systems need a certified reverse power relay to prevent unauthorized feed-in.

Navigating South African Regulations for Solar Carports

Developing a solar carport for a shopping centre in South Africa involves adherence to specific national electrical and structural standards. The regulatory framework ensures safety, grid stability, and proper integration of embedded generation systems. Compliance begins with official registration and approval from local utilities like City Power.

The Electrical Compliance Framework

The core of electrical compliance for solar carports in South Africa is the Certificate of Compliance (CoC). This document confirms that the electrical installation meets the requirements of SANS 10142-1-2.

The process involves several key steps and requirements:

1. Official Registration and Approval: All grid-tied and hybrid solar PV installations must be officially registered and approved by City Power. This ensures the utility is aware of the embedded generation and can manage grid stability.
2. Master Installation Electrician: A registered Master Installation Electrician must issue a supplemental SANS 10142-1-2 CoC. This individual is responsible for verifying that the installation adheres to all relevant safety and performance standards.
3. Inverter Certification: Embedded generation inverters must be certified to NRS 097-2-1 and listed on the approved equipment register. This standard ensures inverters are suitable for grid connection and operate safely.
4. Formal CoC for Hybrid Systems: The entire hybrid generating installation must be certified with a formal SANS 10142-1-2 CoC. This covers all aspects of the system, from PV arrays to grid connection points.

Specific Technical Requirements

Beyond the overarching CoC, several technical components and practices are mandated:

What you can check yourself, and what you cannot

For a shopping centre solar carport, most checks require professional expertise due to the scale and complexity of the installation.

What you can check yourself:

• Documentation: Verify that all required permits, approvals from City Power, and the SANS 10142-1-2 CoC are present and valid.
• Visual Inspection: Conduct regular visual checks for obvious physical damage to panels, mounting structures, or visible cabling.
• Operational Status: Monitor the system's performance through its monitoring interface to ensure it is generating power as expected and not showing error codes.

What you cannot check yourself (requires an accredited professional):

• Electrical Wiring and Isolation: All DC conductors, AC feeders, and auxiliary control cables must be installed in compliance with applicable national electrical codes and verified by an accredited electrical engineer.
• Pre-Commissioning Checks: Complete pre-commissioning checks, insulation resistance testing, and polarity verification prior to final energization and utility permission to operate.
• CoC Issuance: Only a registered Master Installation Electrician can issue the SANS 10142-1-2 CoC.
• Inverter Certification: Verification of inverter certification to NRS 097-2-1 and listing on approved registers requires access to official databases.
• Protection Device Functionality: Testing of reverse power relays, surge arresters, and neutral-earth bonding relays requires specialized equipment and knowledge.

Any work involving opening electrical enclosures, modifying wiring, or testing protective devices must be performed by a qualified and accredited electrician or engineer. Tampering with the system without proper qualifications can lead to safety hazards and invalidate warranties or compliance certificates.

What the published sources do not tell you

The provided regulatory information from Eskom outlines key compliance requirements but does not detail the specific structural engineering standards for solar carports, such as SANS 10160 for wind loading. It also does not provide specific sizing guidelines for system architecture, wiring, or isolation, as these are site-specific and depend on engineering drawings, local utility connection capacity, and manufacturer equipment ratings. The exact process for City Power registration and approval, including specific forms or timelines, is also not detailed in the general statements.
